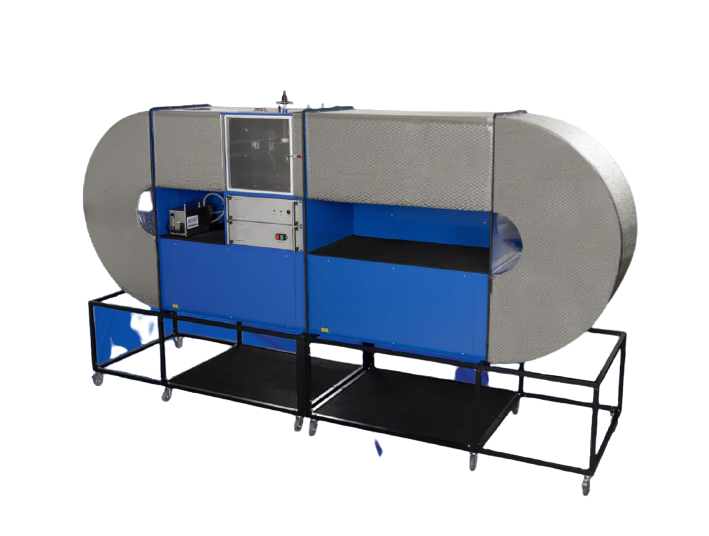

AW Technology 2400 Combined Smoke / Heat Detector Test Tunnel

Overall size of tunnel: 3.15m long * 0.86m wide * 1.60m high

Internal cross section of duct: 470mm wide by 370mm high

Working volume cross section for smoke detectors: 350mm * 250mm

Working volume cross section for heat detectors: 350mm * 100mm

Extract via 150mm diameter flexible duct (requires a back draught shutter)

2400 Combined Smoke / Heat Detector Test Tunnel:

This is designed for testing to EN54-7 and EN14604 from room temperature to 55°C, and to EN54-5 with a starting temperature range from 25°C to 80°C. It is capable of carrying out testing for grades A1 to C to EN54-5, including tests from the maximum application temperature for grade C.
