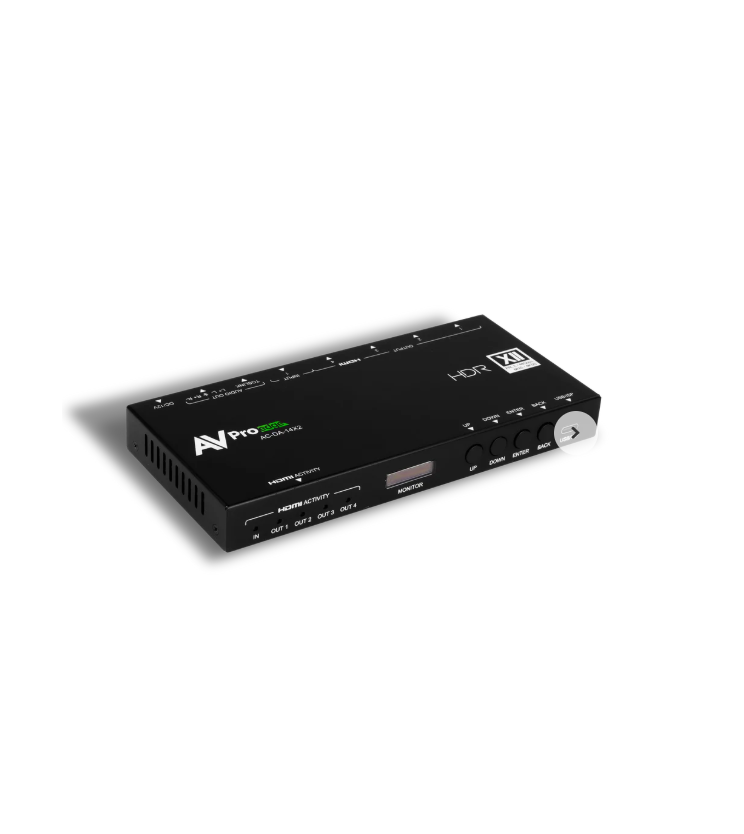

AVPro Edge AC-DA-14X2 Distribution Amplifier (48Gbps 1x4)

Video:

Video Resolutions: Up to 8K 60Hz 4:4:4/8K 30Hz 4:4:4/4k 120Hz

HDR Formats/Resolutions: 420, 422, 444 (10 AND 12 DEEP COLOR) HDR10, HDR10+, DOLBY VISION, HLG

Color Space: YUV (Component), RGB (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)

Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 Supported

Deep Color: Up to 16 bit

Scaling (resolution, Output 2 & 4 only): 8k to 4k or 8k/4k to 1080p

Audio:

Audio Formats Supported HDMI: PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos

Audio Formats Supported Extracted (TOSLINK): LPCM up to 5.1 96KHz 24 Bit, Dolby Digital 5.1, DTS HiRes Audio

Audio Formats Supported Extracted (2CH Port): PCM 2 CH

Distance:

HDMI In/Out (4k60 4:4:4): UP TO 50 FEET (USING BULLET TRAIN HDMI)

HDMI In/Out (W/ AOC Cable) (4k60 4:4:4): UP TO 130 FEET (USING BULLET TRAIN AOC)

Other:

Bandwidth: 48 Gbps (FRL 6)

HDCP: HDCP 2.3 and Earlier

Ports:

HDMI: Type A

Audio (Extracted Digital): Toslink

Audio (Extracted Analog): 5 PIN Terminal Block (Balanced)

Firmware: USB C

Environmental:

Operating Temperature: 23 to 125°F (-5 to 51°C)

Storage Temperature: -4 to 140°F (-20 to 60°C)

Humidity Range: 5-90% RH (No Condensation)

Power:

Power Consumption (Total): 3 watts max

Power Supply:

Input: AC 100-240V ~ 50/60Hz

Output: DC 12V 3A

Dimensions:

Dimensions (Unit Only Length/Width/ Height)

mm: 76.2 X 75.44 X 304.8

inch: 3 X 2.97 X 12

Weight (Unit) 0.66 lbs (0.3 Kg)
