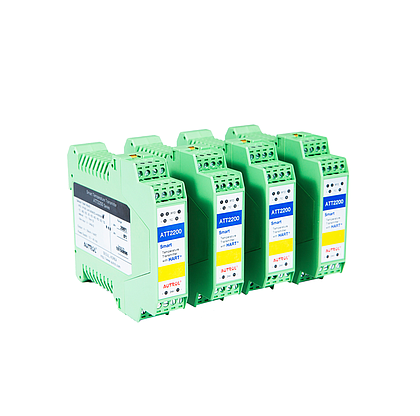

Autrol ATT2200 Temperature Transmitter (RTD,TC)

Type: DIN Rail type Temperature Transmitter
Type sensor: RTD and TC
Accuracy: RTD ±0.17 ℃ , T/C ±0.77 ℃
Input:
+ RTD input: a=0.00385 : KS, JIS, DIN, IEC, a=0.00391 : US
+ Thermocouple input: KSC 1602-1982, JISC 1602-1981, ANSI MC96.1-1982

Protocol: 4 to 20mA, HART, Loop Powered
Trim ability: DAC
Power supply & Load Requirement: 250 to 550 ohm @ 24 Vdc, Loop Powered
Falure Mode: Low ≤ 3.78 mA, High ≥ 21.1 mA
Process Temp. limit: -40 to 85℃ (-104 to 185℉)
Firmware Version: 7.X
Stability:
+ RTD – 2 years (±0.12% of Reading or 0.15℃ whichever is greater)
+ T/C – 1 years (±0.12% of Reading or 0.15℃ whichever is greater)
