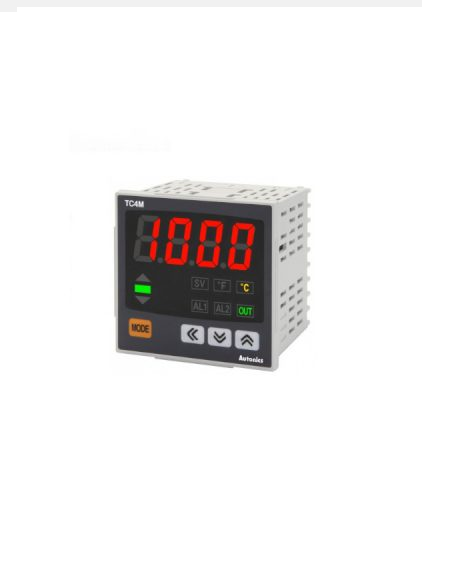

Autonics TC4M-24R Temperature Controller

Dimensions: DIN W72×H72mm

Display Method: 4-digit 7-segment LED

Control Method: ON/OFF, P, PI, PD, PID control

Input Type:

Thermocouple: K (CA), J (IC), L (IC)

RTD: DPt100Ω, Cu50Ω

Sampling Cycle: 100ms

Control Output: Relay (250VAC ~ 3A) or SSR control (12VDC) [ON/OFF, phase, cycle]

Power Supply: 100–240VAC~ 50/60Hz

Display Accuracy – RTD:

At room temperature (23℃±5℃): (PV ±0.5% or ±1℃, whichever is greater) ±1 digit

Outside room temperature: (PV ±0.5% or ±2℃, whichever is greater) ±1 digit

Display Accuracy – Thermocouple (TC):

At room temperature (23℃±5℃): (PV ±0.5% or ±1℃, whichever is greater) ±1 digit

Outside room temperature: (PV ±0.5% or ±2℃, whichever is greater) ±1 digit

Hysteresis: 1 to 100℃/℉ (0.1 to 50.0℃/℉)

Proportional Band: 0.1 to 999.9℃/℉

Integral Time: 0 to 9999 seconds

Derivative Time: 0 to 9999 seconds

Control Cycle Time: 0.5 to 120.0 seconds

Manual Reset: 0.0 to 100.0%

Ambient Temperature: -10 to 50℃,

Storage Temperature: -20 to 60℃

Ambient Humidity: 35 to 85%RH,

Storage Humidity: 35 to 85%RH

Weight: Approx. 204g
