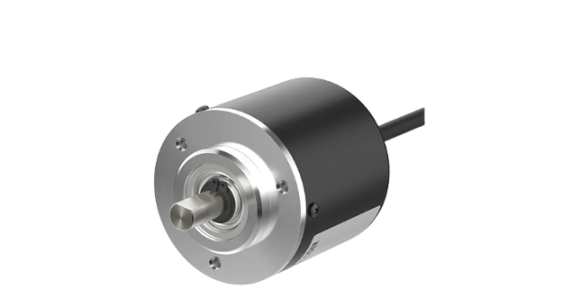

Autonics MGAM50S8-1013-B-F-S-24 50 mm Magnetic Multi-Turn Absolute Rotary Encoders (Shaft Type) (3000rpm, SSI, binary code)
ManufacturerAutonics(View more products from this manufacturer)
ModelMGAM50S8-1013-B-F-S-24
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Shaft outer diameter : Ø8mm
Max. allowable revolution : 3000rpm
Starting torque : Max. 70gf.cm(max. 0.0069N.m)
Resolution : Single-Turn: 1024-division, Multi-Turn: 8192-revolution
Control output : SSI(synchronous serial interface)
Output code: Binary code
Power supply : 12-24VDC ±5%(ripple P-P: max. 5%)
Connection type : Axial cable type
