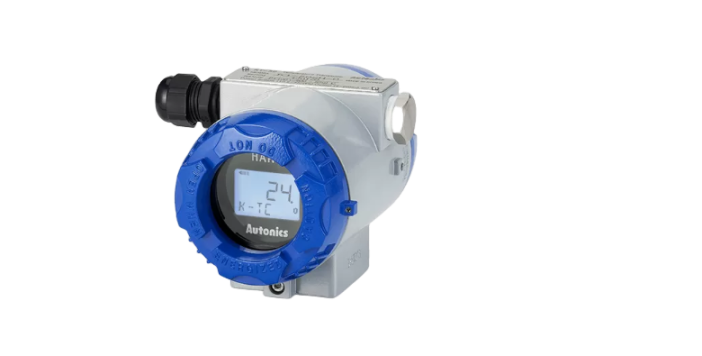

Autonics KT-502H0 Temperature Transmitters with HART Protocol (10.5-45VDC)

Power supply: 10.5-45VDC (with backlight LCD)

Display method: PV display part: 7-segment 5-digit (character size: W4×H8mm), Parameter display part: 14-segment 8-digit (character size: W2.6×H4.8mm), 52-bar meter

Display range: -19999 to 99999

Setting type: HART-protocol (no setting key)

Response time: 1 sec

Input type_RTD: DPt100Ω, DPt500Ω, DPt1000Ω, Ni100Ω, Ni500Ω, Ni1000Ω, Cu50Ω, Cu100Ω

Input type_TC: K, J, T, E, N, S, B, R

Input type_Voltage transmission:-10-75mV, -100-100mV, -100-500mV, -100-2000mV

Output: DC4-20mA (2-wire)

Alarm: Below 3.8mA, Over 20.5mA/Sensor break 3.6mA

Load: Max.(V power supply - 7.5V)/0.22A

Galvanic insulation: 2kVAC(input/output)

Environment_Ambient temperature: -20 to 70℃, storage: 20 to 80℃

Environment_Ambient humidity: 0 to 85%RH, storage: 0 to 85%RH

Explosion class: Ex d IIC T6

MaterialBody: Aluminum (AlDc.8S), Cover O-Ring: Buna N

Weight: Approx. 1.4kg(approx. 1.2kg)
