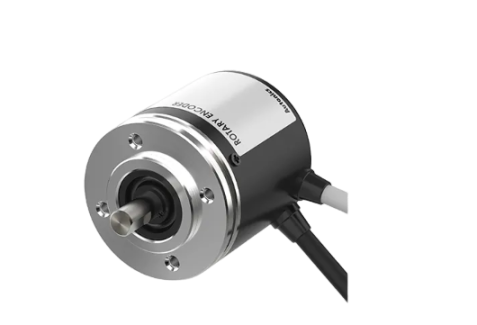

Autonics EPM50S8-1013-B-PN-24-S 50 mm Multi-Turn Absolute Rotary Encoders (Shaft Type) (binary code, NPN, 12-24VDC, Ø8mm)
ManufacturerAutonics(View more products from this manufacturer)
ModelEPM50S8-1013-B-PN-24-S
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Shaft outer diameter : Ø8mm
Max response frequency: 50kHz
Max. allowable revolution : 3000rpm
Starting torque : Max. 70gf.cm(max. 0.0069N.m)
Resolution : Single-Turn: 1024-division, Multi-Turn: 8192-revolution
Output code : Binary Code
Control output : Parallel NPN open collector
Power supply : 12-24VDC ±5%(ripple P-P: max. 5%)
Connection type : Radial cable type
Protection structure : IP64
