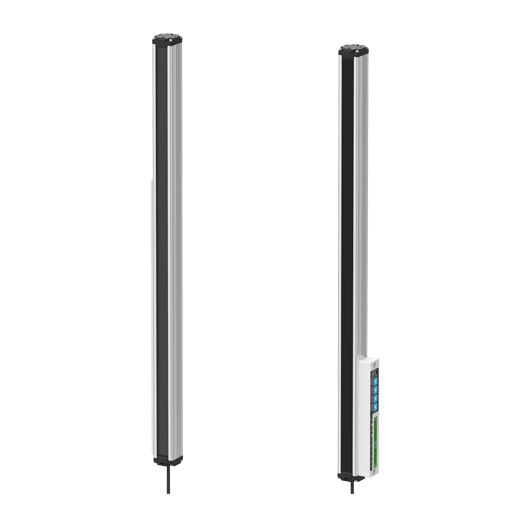

Autonics BWM Through-beam Mapping Sensors (25 ~ 200 mm, ≤ 120 ms)

Sensing method: Through-beam

Beam pattern: Double scan type

Light source: Infrared LED (850 nm modulated light)

Sensing distance: Glass + 30 %

Sensing target: Transparent or opaque glass plate

CH ordering orientation: Forward (bottom = 1 CH) / Backward (top = 1 CH)

Sensing CH: 4 to 62 CH

Optical axis pitch: 25 to 200 mm

Response time: ≤ 120 ms

Operation mode: Light ON / Dark ON

Function: Installation guide mode, sensing level setting, optical axis misalignment alarm (low light intensity alarm), emitter damage alarm, self-diagnosis

Interference protection: Interference protection by transmission frequency selection

Synchronization type: Timing method by synchronous line

Indicator: Output indicator (red), stability indicator (green), status indicator (green, yellow, red)

Weight (packaged):

CC-Link: ≈3.2 kg (≈ 5.3 kg) (based on BWM82-24CLD-T, BWM28-50ECD-T)

EtherCAT: ≈3.42 kg (≈ 5.52 kg) (based on BWM28-50ECD-T

Manual
