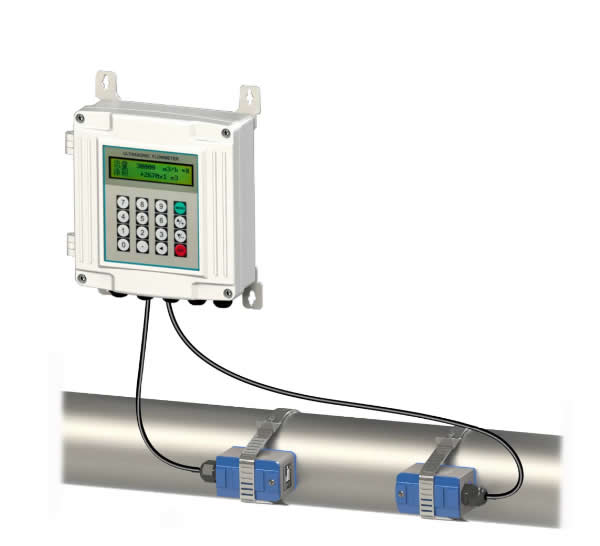

Auto Instrument TUF-2000S Clamp-on Ultrasonic Flow Meter

Linearity: 0.50%

Repeatability: 0.20%

Accuracy: upto ±1% for velocity above 0.2m/s

Response Time: 0-999 second, user-configurable

Flow Range: ±32m/s

Measuring Pipe Size: 15mm-6000mm

Units: English (U.S.) or metric

Totalizer: 7-digit totalizer for net, positive and negative flow respectively

Liquid Types: Any single uniform liquid which can transmit ultrasonic

Security: Setup values Modification Lockout. Access code needs unlocking

Display: 4×16 character

CommunicationInterface: RS-232 interface. 75-57600bps, compatible with Fuji ultrasonic flowmeter and other UFM on enquiry.

Transducers: Model M1 for standard, other 4 models for optional

Transducer Cable:Standard 5m x2 or can be extended to 10m x2

Power Supply: 3 AAA built-in Ni-MH batteries (for over 12 hours of operation). 100V-240VAC adapter

Data Logger: Built-in data logger can store over 2000 lines of data

Manual Totalizer: 7 digit, calibrating by key

Housing Material: Flaming retarding ABS

Size: 200×93×33mm

Handset Weight: 400g with batteries

Read the documentation carefully before ordering

Datasheet:
