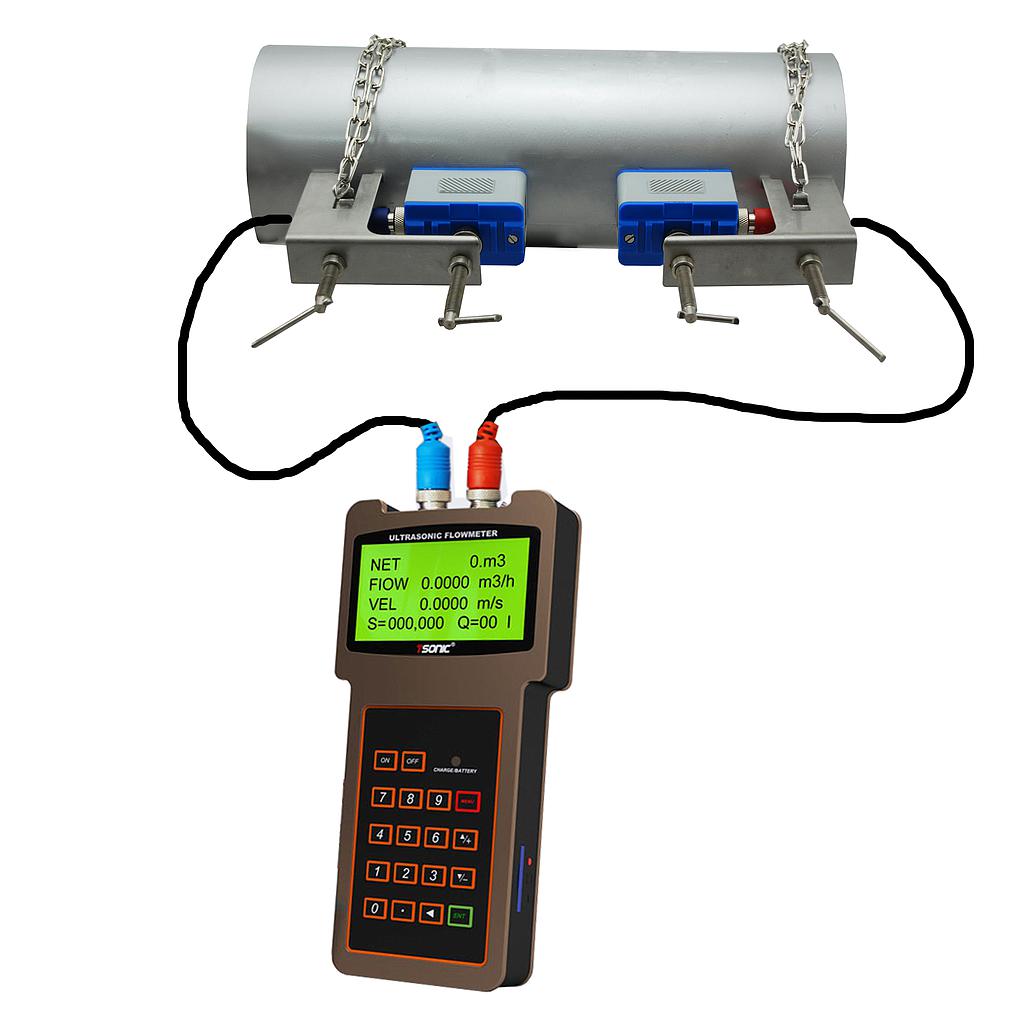

Auto Instrument HS,HM,TL-1 transmitter,5*2 cable Handheld Ultrasonic Flow Meter

Transmitter:

- Pipeline: Ultrasonic transit-time principle,Four-byte IEEE754 floating-point arithmetic

- Accuracy Flow:Better than ±1%

- Display LCD display with Chinese,English,Italian language

- Output: One OCT pule output(pules width 6-1000ms,Default 200ms)

- Data interface: Isolation of 232 communication interface, can upgrade flowmeter through PC

Pipeline Conditions:

- Pipe Material: Steel,Stainless steel,Cast iron,copper,PVC,aluminium,FRP etc.(liner allowed)

-Diameter: 15~6000mm

- Installation: Upstream 10D,downstream 5D,30D away from the pump outlet(D for

Medium:

- Fluid: Water,sea water,acid liquid,beer,alcohol,oil and any other liquid that can spread sonic

- Temperature: Temperature:-30~160 ℃

- Turbidity: 10000ppm and with little bubbles

- Velocity: 0~±10m/s

Operating Environment:

- Temperature: Transmitter:-20~60℃;Transducer:-30~160℃

- Humidity: Transmitter:85%RH;transmitter protection grade:IP67

Power: Three internal 1.2V,2000mAH rechargeable Ni-MH battery.Can work 12 hours fully charged.

Can achieve continuous measurement with AC90~260V power adapter

Comsumption: 1.5W

Case Material: Flame retardant ABS

Weight: 1.5W

Read the documentation carefully before ordering
