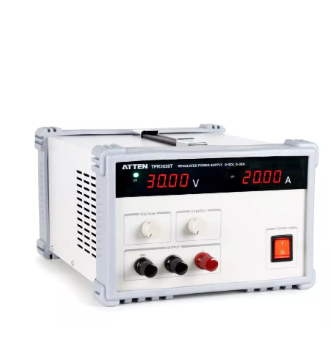

ATTEN TPR3020T High Power CC/CV Linear Power Supply (20A, 32V, 640W)

Rated output power: 640W

Rated output voltage: 0-32V

Rated output current: 0-20A

Power supply voltage: 230VAC/115VAC(Optional)

Voltage

Power supply effect: ≤0.005%+1 mv

Voltmeter display precision: ±(0.1%+2digits)

display resolution: 10mv

Load effect: ≤15mv

Voltage ripple: 0.8mV(rms)

current

Power supply effect: ≤2mA

Voltmeter display precision: 士(0.2%+2digits)

display resolution: 10mA

Load effect: ≤3mA

current ripple:≤6mA(rms)

Protection functions: OVP/OCP/OHP Protection

Heat-diss-pating method: lntelligent speed regulation air cooling

N.W: 13.5KG

Size(W*H*D): 270*178*350(mm)
