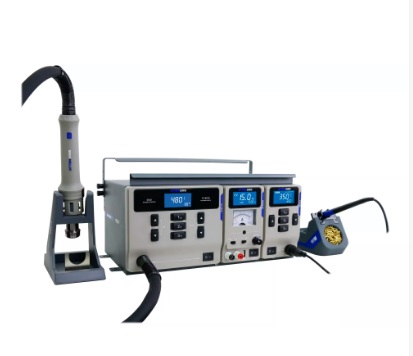

ATTEN MS-500 3 in 1 Rework Station (150-480°C, 1000w)

ST-862D

- Power: 1000W (MAX)

-Input voltage: 110VAC/220VAC ±10% 50Hz/60Hz (optional)

-Temperature range: 100℃~480℃/212℉~896℉

-Temperature calibration: ±50°C/±90°F

-Air flow: 1-99%, 20~130L/min

-Heating element: Pluggable

-Soldering tip/Nozzle: 4 pcs nozzle

-Shortcut temperature/air flow: 3 sets shortcut temperatures/air flow

-Temperature /Air flow adjustment:

-Temp: 10 digits (Coarse)/1 digit (Fine-tuning)

-Air: 2 digits (Coarse)/1 digit (Fine-tuning)

-Functions: Standby heater cooling, Beeping, Timing, Standby Auto-sleep function

-Working conditions: Temperature 0-40°C, relative humidity <80%

-Storage conditions: Temperature -20-80°C, relative humidity <80%

-Dimensions: 21*174*150 mm

-Net weight: 3.34kg

ST-1509

-Power: 150W

-Input voltage: 110VAC/220VAC ±10% 50Hz/60Hz (optional)

-Temperature range: 80℃~480℃/176℉~896℉

-Temperature calibration: ±50°C/±90°F

-Heating element: Pluggable

-Soldering tip/Nozzle: T950-0.1IS

-Shortcut temperature/air flow: 3 sets Shortcut temperature

-Temperature /Air flow adjustment: 10 digits (Coarse)/1 digit (Fine-tuning)

-Functions: Auto-sleep, Auto standby function, Beep alarm function

-Working conditions: Temperature 0-40°C, relative humidity <80%

-Storage conditions: Temperature -20-80°C, relative humidity <80%

-Dimensions: 210*88*150 mm

-Net weight: 3 kg

APS22-5A

-Power: 125W

-Input voltage: 30VAC/110VAC(Optional)

-Rated output voltage: 0-22V

-Rated output current: 0-0.5A/0-5A (dual steps)

-Ripple and noise: CV≤0.5mVrms

-Protection Function: OCP(support automatically recovery)/OHP/Constant overcurrent

-Other Functions: coarse tuning/ fine tuning switch, 0.5A/ 5A switch and parameters locking

-USB interface: Fixed 5V output(±5%), maximum 3A output (over current protection, stop outputting)

-Read Back Accuracy: LCD display:±(0.5±2digits)

-Current pointer display: Class-2.5

-Heat-dissipating method: Smart fan control

-Working conditions: Temperature 0-40°C, relative humidity <80%

-Storage conditions: Temperature -20-80°C, relative humidity <80%

-Dimensions: 210*80*150 mm

-Net weight: 3.6 kg
