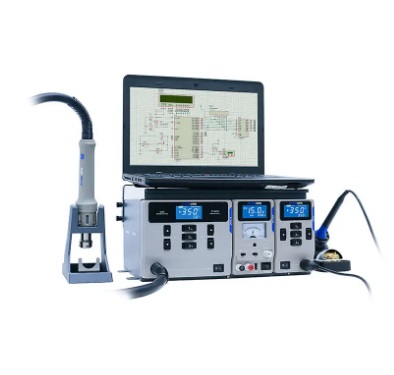

ATTEN MS-300 3 in 1 Rework Station (150-480°C, 1000w)

ST-862D

Power: 1000W (MAX)

Input voltage: 110VAC/220VAC ±10% 50Hz/60Hz (optional)

Temperature range: 100℃~480℃/212℉~896℉

Temperature calibration: ±50°C/±90°F

Air flow: 1-99%, 20~130L/min

Heating element: Pluggable

Soldering tip/Nozzle: 4 pcs nozzle

Shortcut temperature/air flow: 3 sets shortcut temperatures/air flow

Temperature /Air flow adjustment:

Temp: 10 digits (Coarse)/1 digit (Fine-tuning)

Air: 2 digits (Coarse)/1 digit (Fine-tuning)

Functions: Standby heater cooling, Beeping, Timing, Standby Auto-sleep function

Working conditions: Temperature 0-40°C, relative humidity <80%

Storage conditions: Temperature -20-80°C, relative humidity <80%

Dimensions: 21*174*150 mm

Net weight: 3.34kg

ST-965

Power consumption: 65W

Input voltage: 110VAC/220VAC ±10% 50Hz/60Hz (optional)

Temperature range: 200℃~450℃/392℉~842℉

Temperature calibration: ±50°C/±90°F

Heating element: Pluggable

Soldering tip/Nozzle: T900-0.2IS

Shortcut temperature/air flow: 3 sets Shortcut temperature

Temperature /Air flow adjustment: 10 digits (Coarse)/1 digit (Fine-tuning)

Functions: Auto-sleep, Auto turn off the heating, Beeping function

Working conditions: Temperature 0-40°C, relative humidity <80%

Storage conditions: Temperature -20-80°C, relative humidity <80%

Dimensions: 210*88*150 mm

Net weight: 1.97 kg

APS15-3A

Power: 56W

Rated output voltage: 0-5V/0-15V (dual steps)

Ripple and noise: CV≤0.5mVrms

Protection Function: OCP(support automatically recovery)/OHP

Other Functions: coarse tuning/ fine tuning switch, 5V/ 15 switch, 0.5A/ 3A switch and parameters locking

USB interface: Fixed 5V output(±5%), maximum 2.1A output (over current protection, stop outputting)

Read Back Accuracy: LCD display:±(0.5±2digits)

Current pointer display: Class-2.5

Heat-dissipating method: Smart fan control

Working conditions: Temperature 0-40°C, relative humidity <80%

Storage conditions: Temperature -20-80°C, relative humidity <80%

Dimensions: 88*150*215 mm

Net weight: 2.5 kg

Packing List:

Baffle plate: 1 pc

Fixed cover: 1 pc

connection plate: 1 pc

front baffle plate: 1 pc

plastic thumbscrews: 4 pcs

M4 flat head screw: 4 pcs

M3 flat-head screws: 3 pcs

ESD ground wire: 2 pcs

hot air gun holder: 1 pc

Soldering Iron holder: 1 pc

Soldering handle: 1 pc

3 in 1 power cord: 1 pc

Nozzles: 4 pcs

Manual: 3 pcs

Certificate of qualification: 1 pc
