General
CPU: Onboard Intel Core i7-8550U 1.8 GHz Max 4.0GHz Quad Core Eight Threads processor
Core (FSB): 100MHz
CPU: Technique 22nm
L1 Cache: 4 x 32 KB, 8-Way, 64 byte lines
L2 Cache: 4 x 256 KB, 4-Way, 64 byte lines
L3 Cache: 6 MB, 12-Way, 64 byte linesMMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, HTT, EM64T, EIST, Turbo Boost
Motherboard Intel ipc: Xeon E3-1200 v6/7th Gen Intel Core/DRAM Registers – 5914 – 7th Generation Intel Processor Fami
BOIS: American Megatrends Inc. 5.12
ChipsetIntel KABYLAKE
Memory: 2* SO-DIMM DDR4 SlotSupport 4GB/8Gb/16GB/32GB
Dual channel, DDR4-2400, LPDDR3-2133
Storage: 1* MSATA SSD: 8G/16G/32G/64G/128G/256G/512G/1TB1* SATA HDD: 160G/320G/500G/1TB
Operating System: Windows 10/Linux
Audio: Intel High Definition Audio Controller
Network: Onboard Intel i211 Gigabit Network Connection10/100Mbps/1000Mbps BaseT LAN
Video: Intel UHD Graphics 620 ipc
I/O port

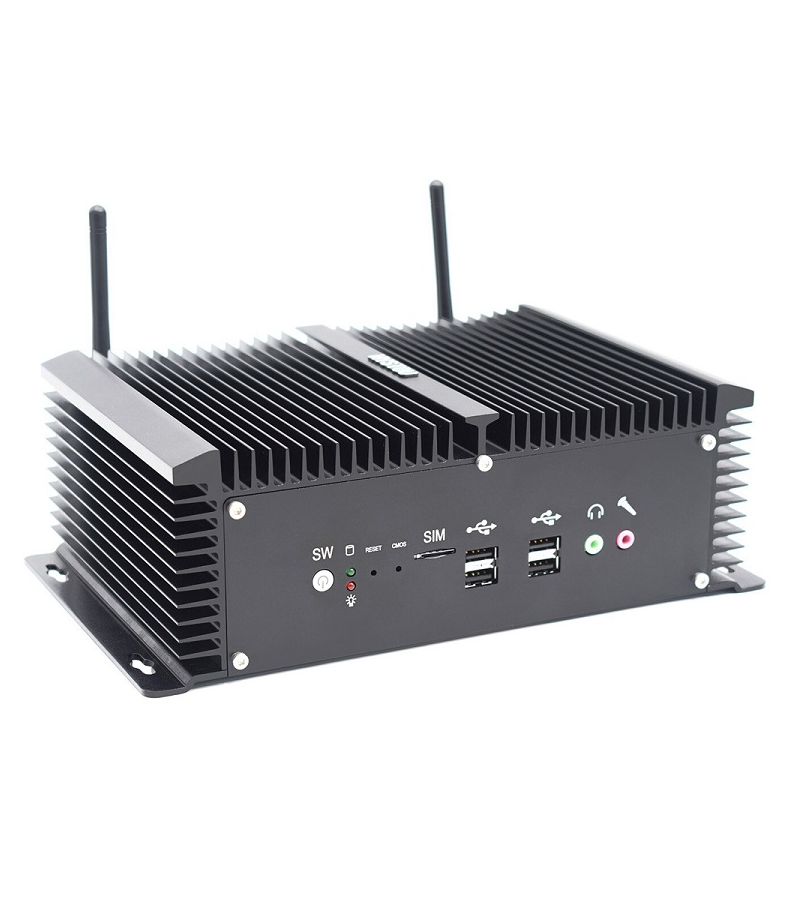

Front panel ports: 1* Switch, 2*LED(red for power, green for hard disk), 1*Reset, 1*CMOS clear button, 1*SIM Card slot, 1*MIC, 1*SPK
Backside ports: 2*WIFI, 1*DC IN, 4*USB3.0, 2*LED(red for power, green for hard disk), 1*HDMI, 1*VGA, 2*RJ45 LAN, 2*COM, 1*GPIO, 1*2Pin Phoenix terminal power supply input
COM ports: 2*COM ports, can change to RS232/422/485 from BIOS
Internal ports: 1* M-SATA3.0 port, support 6Gb/s1* SATA3.0 port, support 6Gb/s
1* mini PCIE-half port for WiFi module
1* mini PCIE-full port for 3G/4G module
SIM slot: Embedded SIM card slot with push function
Power and Working Environment ipc
Input: DC100-240V AC/50-60Hz
Output: DC +9V~+36V, recommend 12V/5A
Operating Temperature: 0/+65 Centigrade
Storage Temperature: -20/+80 Centigrade
Relative Humidity: 20%~85% (non-condensing)
Product Dimension & Details
Dimensions: 150*83*224 mm (248 chassis)
Weight: 3.5kg
Consumption: 15W
Shell: Silver color aluminum alloy
