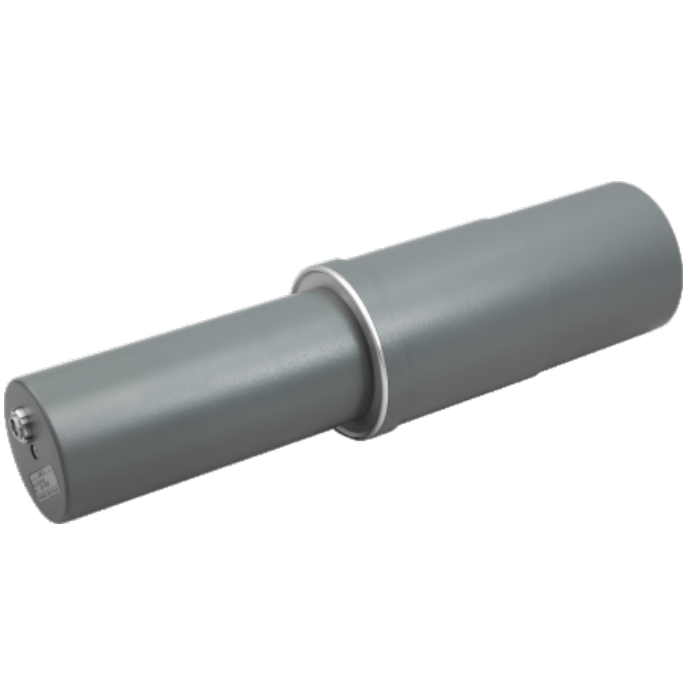

Atomtex BDKG-35 Dosimetric Gamma Radiation Detection Unit (γ, 0 – 1.5•10^5 s^-1)

Detector: Scintillation plastic, Ø70х150 mm

Energy range: 20 keV – 10 MeV

Measurement range of ambient dose equivalent rate: Count rate indication range: 0 – 1.5•10^5 s^-1

Measurement range of air kerma rate: -

Limit of intrinsic relative measurement error: -

Energy dependence relative to 662 keV ( 137Cs): -

Typical sensitivity to gamma radiation, cps/(µSv·h^-1 )

241Am: 11500

60Co: 1700

137Cs: 3300

Response time for dose rate change from 0.1 to 1 µSv/h (µGy/h): ≤2 s[accuracy error ≤±10%]

Protection class: IР64

Interface: RS232

Power supply: RS232 – 5-9 VDC

Overall dimensions, weight: Ø80х320 mm, 1.2 kg
