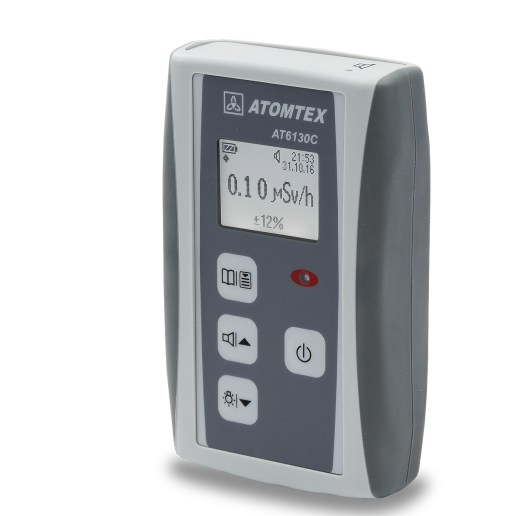

Atomtex АТ6130C Radiation Monitor (x & γ, 0.1 µSv/h – 1 mSv/h)

Measurement range:

- Ambient dose equivalent rate: 0.1 µSv/h – 1 mSv/h

- Ambient dose equivalent: 0.1 µSv – 100 mSv

Energy range: 50 keV – 3 MeV

Response time for dose rate change from 1 to 10 µSv/h: ≤7s(accuracy error ≤±10%)

Typical sensitivity to Cs gamma radiation 2.8 cps/(µSv·h )

Continuous run time in natural background conditions: ≥700 h

Working temperature range: -20°C to +55°C

Relative humidity with air temperature ≤35 С without condensation: ≤95%

Drop protection: From ≤1.5 m to hard surface

Protection class: IP40

Power supply: 2 x AA-size batteries (LR 6) or 2 x AA-size rechargeable cells with nominal voltage 1.2 V

Overall dimensions, weight: 111x70x28 mm, 0.2 kg

Datasheet
