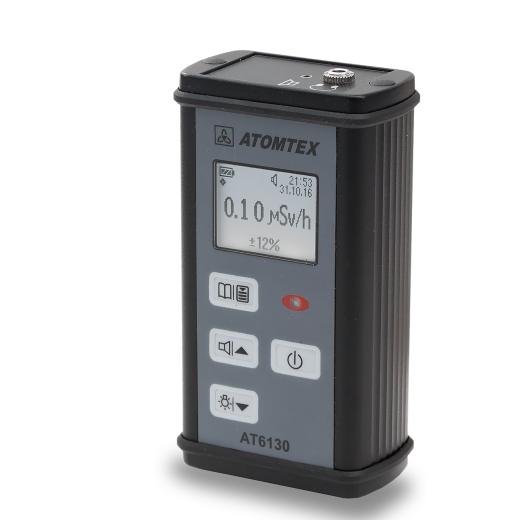

Atomtex АТ6130 Radiation Monitor (x & γ, β)

Measurement range:

- Ambient dose equivalent rate: 0.01 µSv/h – 10 mSv/h or 1 µrem/h – 1 rem/h

- Ambient dose equivalent: 1 µSv – 100 mSv or 0.1 µrem – 10 rem

Beta particles measurement range:

- flux density 10 – 1•10^4 particle•min^-1 •cm^-2

- surface activity -2 0.5 – 500 Bq•cm - surface activity -2 0.5 – 500 Bq•cm ^-2

- count rate 0.1 – 1•10^4 cps

x & γ radiation energy range: 20 keV – 3 MeV

Spectrum maximum energy range of registered beta particles: 155 keV – 3.5 MeV

Response time for dose rate change from 1 to 10 µSv/h: ≤7s(accuracy error ≤±10%)

Typical sensitivity to 137Cs gamma radiation 2.8 cps/(µSv·h^-1 ); to 90Sr +90 Y beta radiation 0.05 cps/(particles•min^-1 •cm^-2 )

Continuous run time: ≥500 h

Working temperature range: -20°C to +55°C

Relative humidity with air temperature ≤35 С without condensation: ≤95%

Drop protection: From ≤1.5 m to hard surface

Protection class: IP57

Power supply: 2 x AAA-size batteries (LR03) or 2 x AAA-size rechargeable cells with nominal voltage 1.2 V

Overall dimensions, weight: 110x60x38 mm, 0.25 kg

Datasheet
