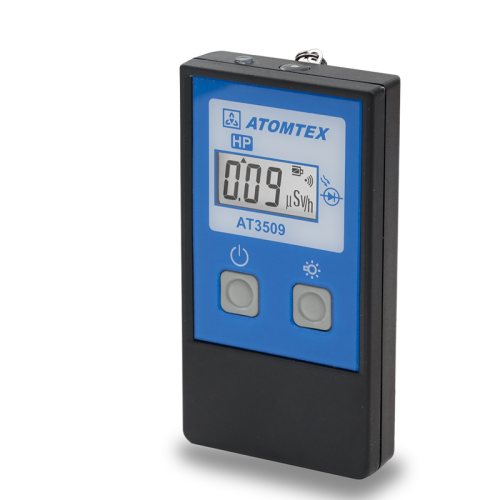

Atomtex AТ3509 Personal Dosimeter (x & γ)

Measurement range of individual dose equivalent Hp(10): 0.1 µSv – 10 Sv

Measurement range of individual dose rate equivalent Hp(10): 0.1 µSv/h – 1 Sv/h

Energy range: 15 keV- 10 MeV

Alarm thresholds: 1 of 8 independent dose thresholds, 1 of 8 independent dose rate thresholds

Response time for dose rate change: ≤5 s

Radiation overloading: ≤10 Sv/h

Burn-up life: ≥100 Sv

Power: 2 x AAA type batteries, rechargeable cells can be used

Continuous run time: ≥500 h

Working temperature range: -10°C-+40°C

Relative air humidity with temperature ≤35°C without moisture condensation: ≤90%

Drop protection :From ≤1.5 m to hard surface

Protection class: IР54

Connection to PC: USB (via Reader)

Overall dimensions, weight: 105x58x23 mm, 100 g
