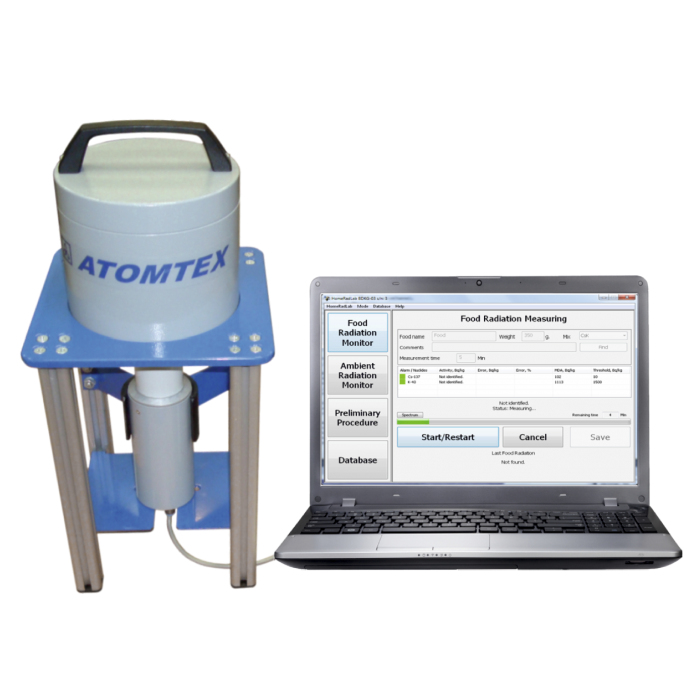

Atomtex AТ1135 Portable Radiometric Laboratory (γ, 50 keV – 1.5 MeV)

Detector: Scintillation, NaI(Tl) Ø25x40 mm

Energy range: 50 keV – 1.5 MeV

Measurement ranges of radionuclide specific activity for samples with 1 g/cm3 density (measurement geometry: 0.5-litre Marinelli beaker)

25 – 1•10^5 Bq/kg (134Cs)

25 – 1•10^5 Bq/kg (137Cs)

360 – 2•10^4 Bq/kg (40K)

Density range of measured samples: 0.5 – 1.5 g/cm3

Gamma radiation ambient dose equivalent rate measurement range (detection unit is not covered by lead protection): 0.03 – 300 µSv/h

Typical energy resolution at 662 keV (137Cs): 9%

Number of ADC channels: 512

Operation mode setup time: ≤20 min

Continuous run time: ≥24 h

Working temperature range: 0°C to +40°C

Relative air humidity with temperature ≤35°C without condensation: ≤75 %

Protection class: IР54

Connection to PC: USB

Overall dimensions, weight:

Ø60x296 mm, 0.6 kg (detection unit)

200x200x437 mm, 13 kg (protection unit)

95x51x33 mm, 0.1 kg (USB-DU adapter)
