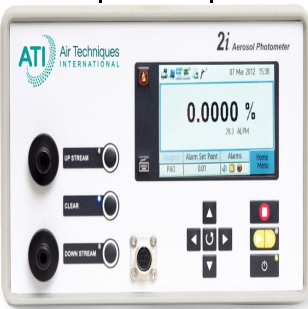

ATI 2i Digital Aerosol Photometer

Service & Training @ ATI
- OEM calibration, maintenance & repair
- ATI Certified Operational, Service & Maintenance Training (ask for details)
- Quality testing for HEPA filters & protective masks available at
our ISO-9001 registered, NQA-1 & DOE audited Test Laboratory

Specifications

- Size: 10.1” W × 13.0” D × 6.0” H (25.7 cm × 33.0 cm × 15.2 cm)
- Weight: Base unit – 19.0lbs (8.6Kg), Ensemble - 36lbs (16.4Kg)
- Power : 100 to 250 Volts AC, 50/60Hz automatic adjustment
- Consumption: 0.5 amps @ 120V, 0.25 amps @ 240V
- Auto Zero: Automatically establishes zero reading at startup
- Alarm: User selectable audible, visual, and vibratory alarms notify the user when the user defined set point is exceeded.
- Flow Control: Pulse Width Modulation (PWM) control ensures sampling rate of 1cfm (28.3lpm) +/- 10% in all applications.
- Reagent Settings: PAO-4, DOP, Ondina, PEG, Krydol, Corn Oil, Mineral Oil, Paraffin
- Dynamic Range: Up to 600 micrograms per liter
- Sensitivity: 1% of readings > 0.01% to100%
- Repeatability: 0.5% of readings > 0.01% to 100%
- Light Source: Solid State, rated for life of instrument
- Output: USB Connection, Optional Printer Accessory
- Reporting : Continuous, Summary, and Monitoring modes
- Printer Accessory: Thermal Printer for hard copy of Summary Report
- Standards Compliance Industry Electrical & Safety: NSF 49, IEST, ISO-14644
