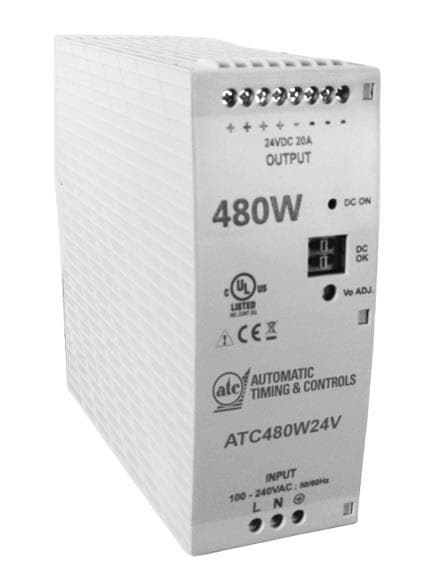

ATC Automatic Timing & Controls ATC480W24V Power Supplies Power Supply 480 watt 24 vdc

Width: 154 mm (6.063 in)

Height: 60 mm (2.362 in)

Length: 158.55 mm (6.242 in)

Industry: Industrial

Dimensions: 158.55 mm x 154 mm x 60 mm

Output Power: 480 W

Input Voltage: 90 VAC to 264 VAC, 127 VDC to 370 VDC

Mounting Style: DIN Rail Mount

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 20 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
