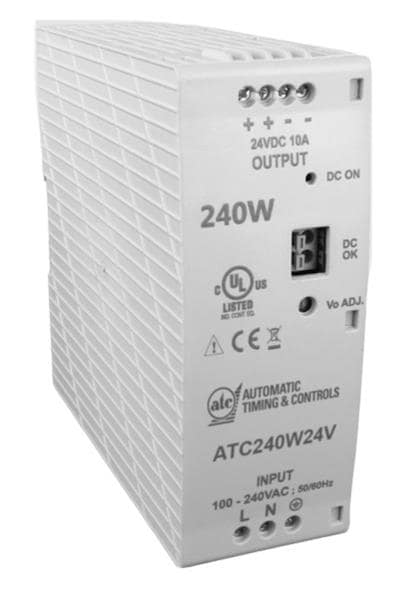

ATC Automatic Timing & Controls ATC240W24V Power Supplies Power Supply 240 watt 24 vdc

Width: 135 mm (5.315 in)

Height: 50 mm (1.969 in)

Length: 136 mm (5.354 in)

Industry: Industrial

Dimensions: 136 mm x 135 mm x 50 mm

Output Power: 240 W

Input Voltage: 90 VAC to 264 VAC, 127 VDC to 370 VDC

Mounting Style: DIN Rail Mount

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 10 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
