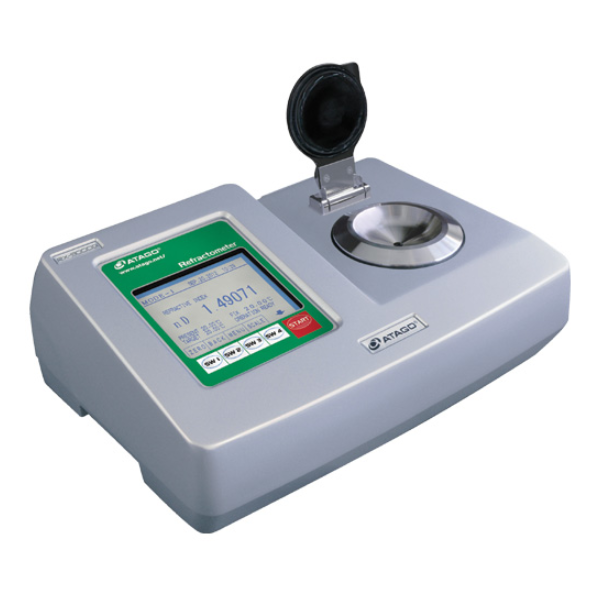

ATAGO RX-9000α Automatic Digital Refractometer (Refractive index (nD): 1.29980 ~ 1.71500, Brix: 0.00 ~ 100.00%)

The RX-9000α is a fully automatic digital refractometer with the highest level of accuracy of its kind. This is designed with a wide measurement range, measurement temperature range, and highest measurement accuracy, which is suitable for multiple sample types ; such as measuring oils and fats with high melting points, aroma oils of high refractive index and organic solvents, meeting demands for high accuracy measurements.It has a built-in Peltier thermo module for maintaining a constant sample temperature while taking measurements.

Range: Refractive index (nD) : 1.29980 to 1.71500

Brix : 0.00 to 100.00%

Resolution: Refractive index (nD) : 0.00001

Brix : 0.01%

Temperature: 0.01°C

Accuracy: Refractive index(nD): ±0.00004

(0.00010 for the nD higher than 1.42009)

Brix±0.03%

(±0.05% for the Brix higher than Brix 50.01)

Temperature control range: 5.00 to 70.00°C

Dimensions & Weight: 37×26×14cm, 6.8kg

Output: Printer (for ATAGO digital printers)

Computer - RS-232C

Connection to a USB port requires a USB to RS-232 adapter (optional)

Datasheet
