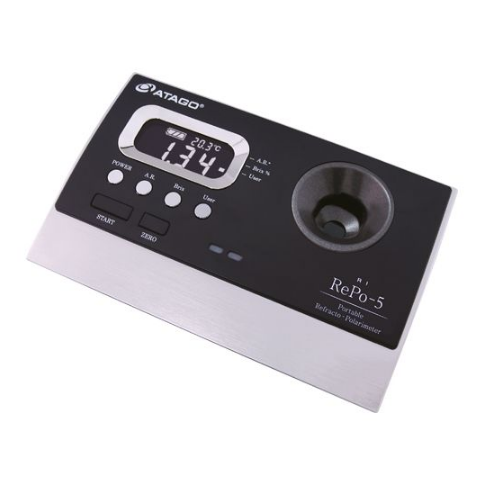

ATAGO RePo-5 Portable Refracto-Polarimete (-5.00 ~+5.00°; 0.0 ~ 85.0%)

In addition to angle of rotation and Brix, the RePo-5 can also display the refractive index (nD) of a sample. The RePo-5 is ideal for quality control in various industries such as fragrances, cosmetics, or pharmaceutical.RePo-5 satisfies Pharmacopoeia standards.

Range

Angle of Rotation:-5.00 to +5.00° (Convertible to -25.00°to +25.00°with a 100mm observation tube, Convertible to -50.00° to +50.00°with a 200mm observation tube)

Brix: 0.0 to 85.0%

Refractive index:1.3306～1.5050

Temperature: 15.0 to 40.0℃

Resolution

Angle of Rotation : 0.01°

Brix: 0.1%

Fructose % : 0.1%

Refractive index : 0.0001

Temperature : 0.1℃

Accuracy

Angle of Rotation: ±0.1° (20℃)

Brix：±0.2%

Refractive index:±0.0002 (20℃)

Temperature: ±1℃

Measurement Readings: Angle of Rotation, Brix, Refractive index,Temperature

Temperature compensation: Brix ： 15 to 40℃

Light source: LED

Measurement Time: 12 seconds

Power Supply: Size AAA alkaline battery x4

International Protection Class: IP67
