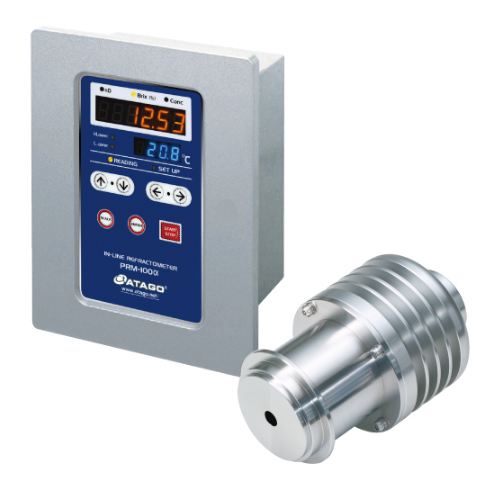

ATAGO PRM-100α DX In-line Refractometer (Refractive index (nD) : 1.32000 ~ 1.55700, Brix: 0.00 ~100.00%)

The DX series has succeeded in reducing the weight while maintaining the performance of the PRM-100α. The sophisticated and compact silver housing contributes to the SDGs by saving resources.By installing the PRM-100α DX to the pipe line of manufacturing plants for liquid products such as food and medicine, various industrial liquid, cleaning/washing machine , dilution/mixing/blending machine, it can measure the refractive index, Brix%/concentration, moisture, and mixing ratio of various solutions.

Range

Refractive index (nD): 1.32000 to 1.55700

Brix: 0.00 to 100.00%

Temperature (℃): -5.0 to160.0℃

Resolution

Refractive index (nD) : 0.0001 or 0.00001

Brix: 0.1 or 0.01%

Temperature (℃）: 0.1℃

Accuracy

Refractive index (nD): ±0.00010

Brix: ±0.05%

Temperature (℃): ±0.1℃

Temperature compensation: 5.0 to 100.0ﾟC

High and low limit setting: High and low control limits can be set with keys.

Alarm output: Open-collector output for high- and low-limit settings (alarm output).

Cable: Detection section - Display section (power supply 12V and RS-485), Length: standard 15m (maximum up to 200m)

Output: RS-232C, DC4 to 20mA
