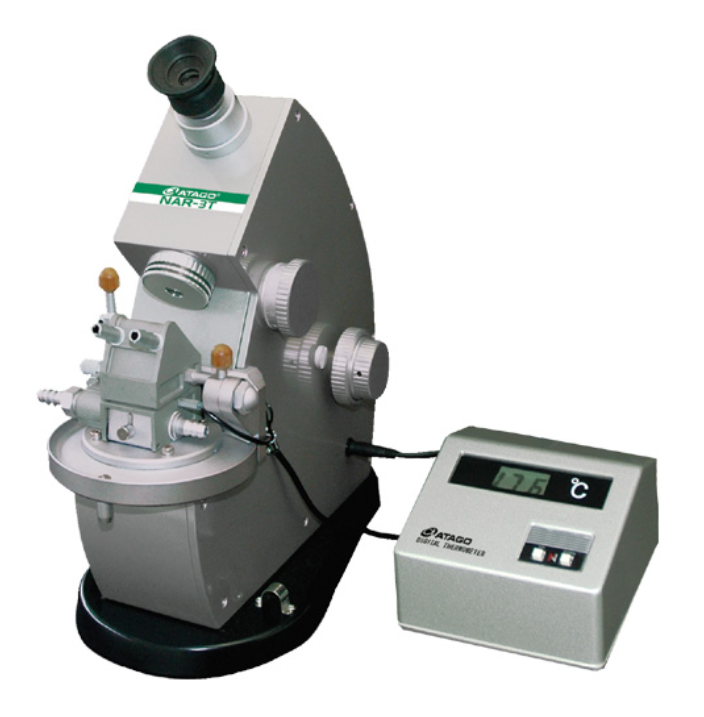

ATAGO NAR-3T Abbe Refractometer (Refractive index (nD) : 1.30000 ~ 1.71000, Brix: 0.00 ~ 95.00%)

The NAR-3T has been developed to give improved measuring accuracy and ease of use. This has been achieved by making fundamental improvements to the optical system, utilizing a larger scale, incorporating a high intensity lamp and using a double control knob to give quick and finer control.

Range: Refractive index (nD) : 1.30000 to 1.71000

Brix : 0.00 to 95.00%

Accuracy: Refractive index (nD) : ±0.0001

Brix : ±0.05%

Minimum Scale: Refractive index (nD) : 0.0002

Brix : 0.1%

Average dispersion value: nF - nC (to be calculated according to conversion table)

Measurement Temp.: 5 to 50ﾟC

(Temperature range available of the circulating water)

Light source: LED (Approximating to wavelength of D-Line)

Dimensions & Weight 12×31×34cm, 6.8kg(Refractometer)

10×11×7cm, 0.5kg (Thermometer)
