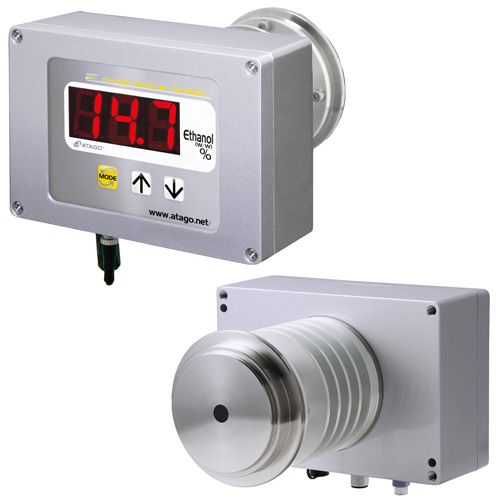

ATAGO CM-800α-Ethanol(W/W) In-line Ethanol (W/W) Monitor (Ethanol(W/W): 0.0～60.0%)

Range:

Ethanol(W/W): 0.0～60.0%

(Guaranteed accuracy range up to 45.0%)

Temperature: -15～160℃ / 5～320ﾟF

Resolution:

Ethanol(W/W): 0.1%

(2nd decimal place shown per selection for 0.00 - 9.99%)

Temperature: 1℃ / 1ﾟF

Accuracy:

Ethanol(W/W): ±1.0%

Temperature: ±1℃

Temperature compensation: 5～35℃

Output: DC4～20mA, RS-232C

Alarm output: Open-collector output for high- and low-limit settings (alarm output).

Power Supply: DC24V

Datasheet
