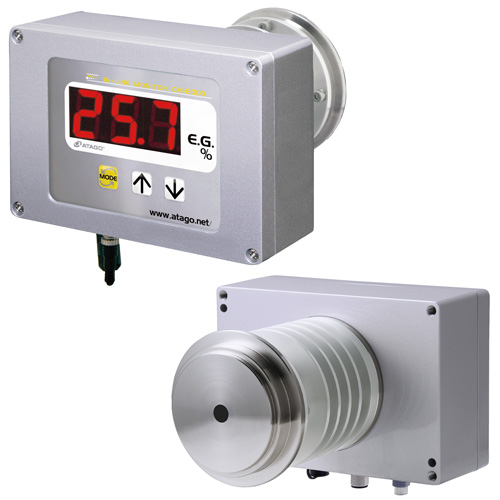

ATAGO CM-800α-EG In-line Ethylene Glycol Monitor (E.G.: 0.0 ~ 90.0%)

The CM-800α-EG is specially designed for in-line concentration measurements of ethylene glycol solutions used as coolants,LLC,brine,anti-freeze, and de-icing fluids. It also has a secondary scale for the freezing point.

Range:

E.G. : 0.0 to 90.0%

Freezing point : -50 to 0ﾟC / -58 to 32ﾟF

Temperature : -15 to 160ﾟC / 5 to 320ﾟF

Resolution:

E.G. : 0.1%

Freezing point : 1ﾟC / 1ﾟF

Temperature : 1ﾟC / 1ﾟF

Accuracy:

E.G. : ±0.4%

Freezing point : ±1ﾟC / ±1ﾟF

Temperature : ±1ﾟC / ±1ﾟF

Temperature compensation: 5 to 100ﾟC

Output:

(1) DC 4 to 20mA

(2) RS-232C output

Alarm output: Open-collector output for high- and low-limit settings (alarm output).

Power Supply: DC24V
