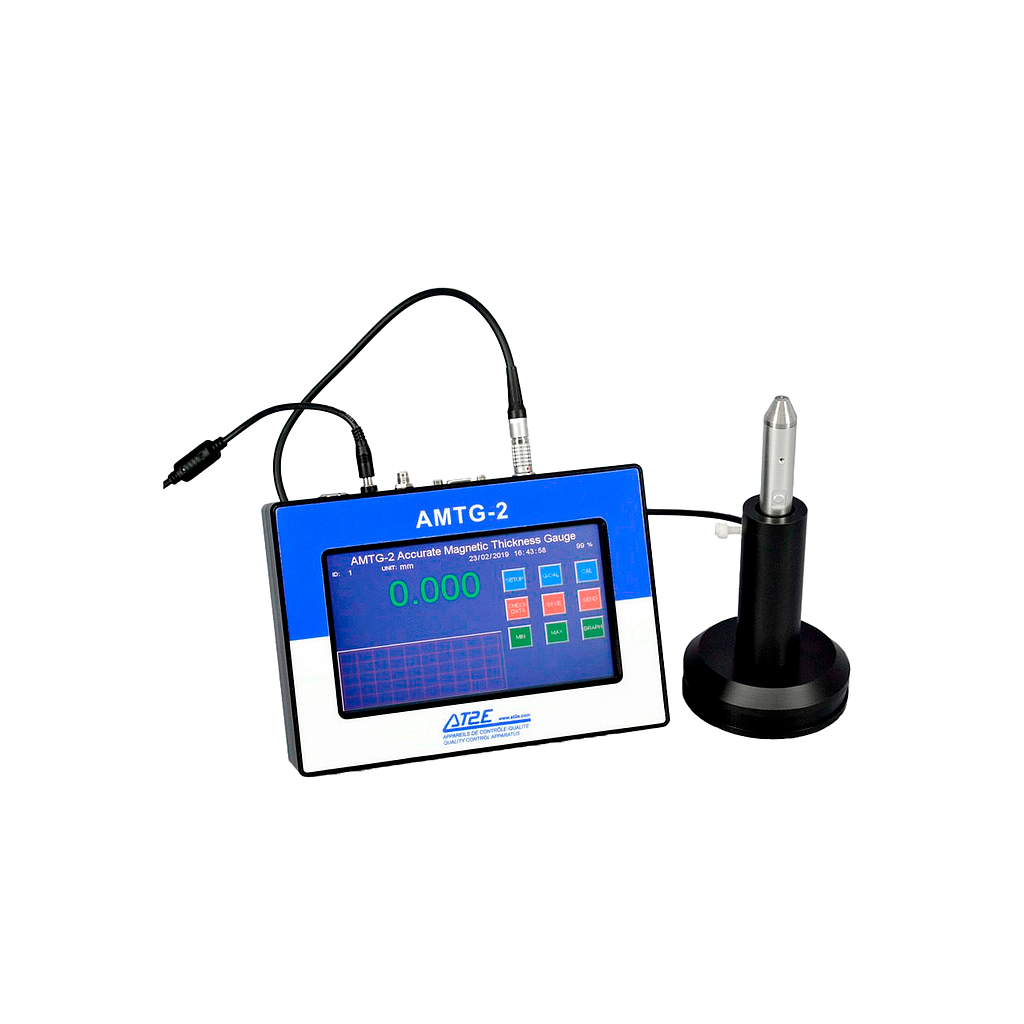

AT2E AMTG-2 Magnetic Thickness Gauge

Measuring mode: Normal / High precision

Display mode: continuous / Minimum or Maximum

Resolution: 0.01 mm or 0.001 mm (0.001" or 0.0001")

Display: TFT screen

Output: RS-232

Calibration: Multi-point (13 points)

Power supply: DC 8.4V

Battery: Rechargeable lithium recharges in 2-3 hours.

Unit: mm/Inch

English language

Dimensions: 210 x 150 x 65 mm

Net weight: 2 kg (with suitcase: 5 kg)

Measuring range (on request 0-4 mm, 0-8 mm and 0-10 mm)

Description :

The “AMTG” is a portable thickness gauge. It is used to measure the thickness of non-magnetic materials, such as plastic, glass, plastic, aluminum, titanium, etc. The measurement accuracy will not be affected by the shape of the samples.
