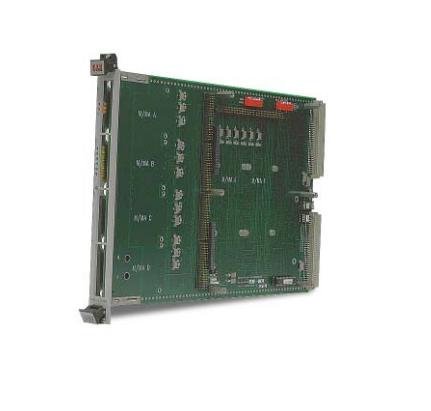

Astronics VX405C M/MA-Module Carrier

The VX405C carrier provides the mechanical and electrical interfaces between the VXIbus and up to six (6) VITA 12-1996 standard M/MA-Modules. The carrier provides VXI register configuration and access to the M/MA-Module I/O space and memory (if present). Each M/MA-Module is controlled separately and appears as a different logical address in the VXI environment. Over 100 M/MA-Modules are available that can provide custom interfacing to the unit under test (UUT). Up to six (6) unique interfaces may be provided in a single VXI slot.

Key features:

Provides mechanical and electrical interfaces between the VXIbus and up to six M/MA-modules

Each M/MA-module controlled separately

Complies with VXIbus Rev 1.4 specification

Multiple instruments and interface types in a single VXI slot

Multiple serial protocol test
