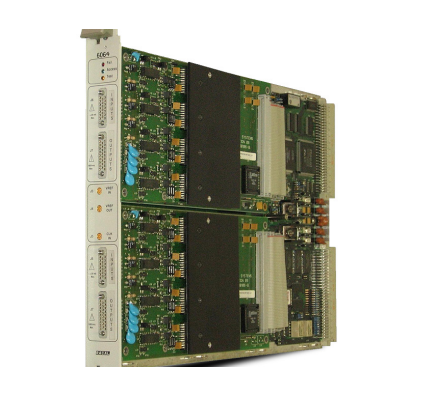

Astronics 6084A-104-DMM 1 GHz Digitizer and 7.5 Digit Digital Multimeter

Increases test system performance and density with this combo unit, which packages a 7.5 digit Digital Multimeter (DMM) together with a 10-bit, 1 GHz Digitizer into a single VXI slot.

• Replaces the Wavetek 1362 DMM, Analogic DBS Series, and Agilent VXI Digitizers

• Digitizer with 4 Inputs, 10-bits, 1 GHz, up to 4 GS/s and ranges up to 500 V

• DMM with 7.5 Digits for DC Volts, Current and Ohms with AC Volts up to 1 MHz

• IVI-COM Drivers and Soft Front Panels provided

• More Dynamic Range (by 20 dB for DMM and 12 dB for Digitizer) for better legacy range mapping

Datasheet
