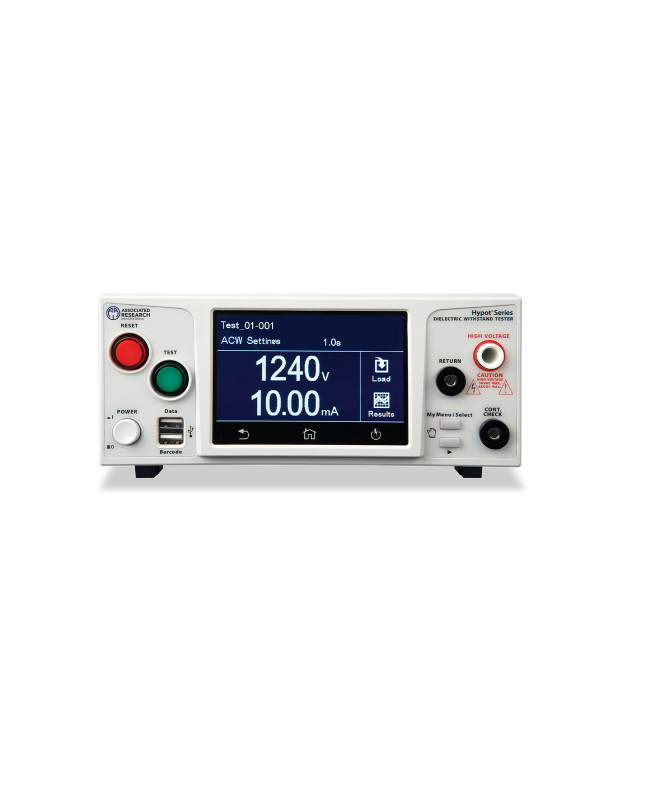

Associated Research (ARI) 3855 Electrical Safety Tester (5 kV @ 20 mA AC, IR, 5 years warranty)

INPUT:

Voltage: 100 – 120 VAC / 200 – 240 VAC ± 10% Auto Range

Frequency: 50/60 Hz ± 5%

Fuse: 3.15 A, Fast Blow 250 VAC

DIELECTRIC WITHSTAND TEST MODE

Output Rating: 5 kVA @ 20 mAAC

Maximum Limit :

AC: Range: 0.00 – 20.00 mA, Resolution: 0.01 mA

DC : Range: 0 – 7500 µA, Resolution: 1 µA, Accuracy: AC and DC ± (2% of setting + 2 counts)

Minimum Limit:

AC: Range: 0.000 – 9.999 mA, Resolution: 0.001 mA

DC : Range: 0.0 – 999.9 µA, Resolution: 1 µA, Accuracy: AC and DC ± (2% of setting

+ 2 counts)

Arc Detection Range: 1 – 9 (9 is most sensitive)

Ground Fault Interrupt:

GFI Trip Current: 450 µA max (AC or DC), Fixed

HV Shut Down Speed: < 1 msec

INSULATION RESISTANCE TEST MODE

Voltage Setting:

Range: 30 – 1,000 VDC

Resolution: 1 V

Accuracy: ± (2% of setting + 5 V)

Resistance Display: Range: 1 – 50,000 MΩ

Charge-LO Range: 0.000 – 3.500 µA DC or Auto Set

Ramp Timer Range: Ramp-Up: 0.1 – 999.9 sec

Ramp-Down: 0, 1.0 – 999.9 sec, (0=OFF)

Delay Timer Range: 0.5 – 999.9 sec (0=OFF)

Dwell Timer Range: 0, 0.5 – 999.9 sec (0=continuous)

GENERAL SPECIFICATIONS

Remote Control and Signal I/O

Inputs: Test, Reset, Hardware Interlock, File Recall

Outputs: Pass, Fail, Test-in-Process, Reset-Out, Start-Out

Vmax: Displays the maximum voltage value recorded during a breakdown

Imax: Displays the maximum leakage current value read during a test

Memories:

50 steps

1500 test results

Interface: USB standard

Language: English, Traditional Chinese, Simplified Chinese, Turkish, Portuguese, Spanish, German, French

Security: Multiple user setups with ID and password

Dimensions (W x H x D): 8.5" x 3.5" x 11.9"

Weight: 12 lbs (5.46 kgs)
