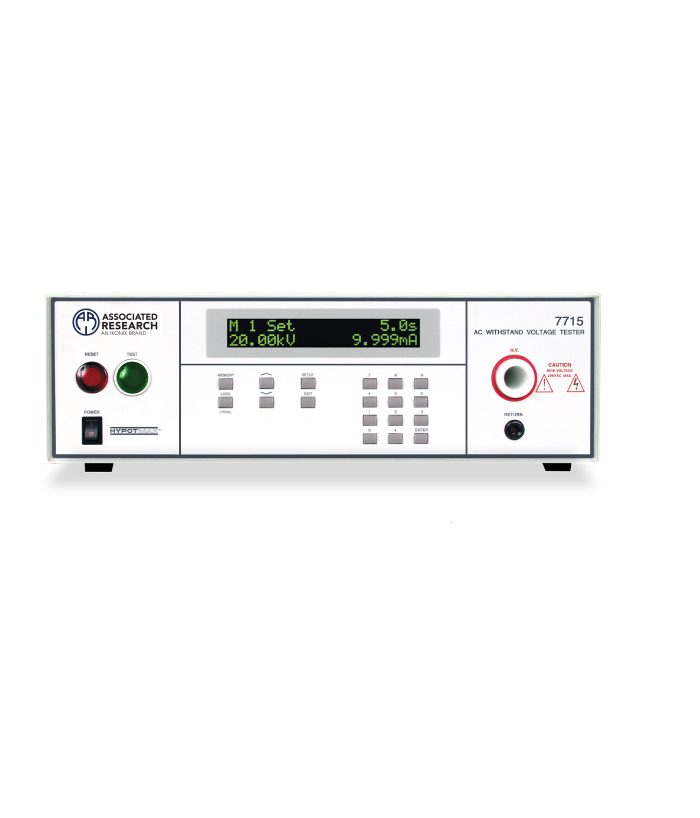

Associated Research (ARI) 7715 + ISO Calibration + 40396 + 38305 without USB, RS232 AC Hipot Tester (20 kV @ 10 mA AC, CE listed, bảo hành 5 năm + option (Premium ISO Calibration + 40396 Insulation mat 3x3 class3 + 38305 Option GPIB, without USB, RS232))

INPUT SPECIFICATIONS

Voltage: 115/230 VAC ± 10%, Single Phase, User Selection

Frequency: 50/60 Hz ± 5%

Fuse: 6.3 A, 250 V Slow Blow

DIELECTRIC WITHSTAND TEST MODE

Output Rating: 20 kV @ 10 mAAC

HI-Limit and LO-Limit:

Range: 0.00 – 9.999 mA

Resolution: 0.001 mA

Accuracy: ± (2% of setting + 2 counts

Arc Detection:

1 – 9 at output voltage < 15.00 kV

1 – 7 at output voltage ≥ 15.00 kV

Voltage Display:

Range: 0.00 – 20.00 kV Full scale

Accuracy: ± (2% of reading + 20 V)

Current Display

Auto Range

Range 1: 0.000 – 3.500 mA

Range 2: 3.00 – 10.00 mA

AC Output Waveform: Sine Wave, Crest Factor = 1.3 – 1.5

Ramp Timer: Range: 0.3 – 999.9 sec

Ground Continuity: Max. Ground Resistance 1 Ω ± 0.1 Ω, fixed

GENERAL SPECIFICATIONS

Memory: 50 memories w/ 8 steps per memory

Mechanical: Tilt-up front feet

Optional: GPIB

Dimensions (W x H x D): 16.93" x 5.24" x 15.75" (430 x 133 x 400 mm)

Weight: 59.4 lb (26.9kg)
