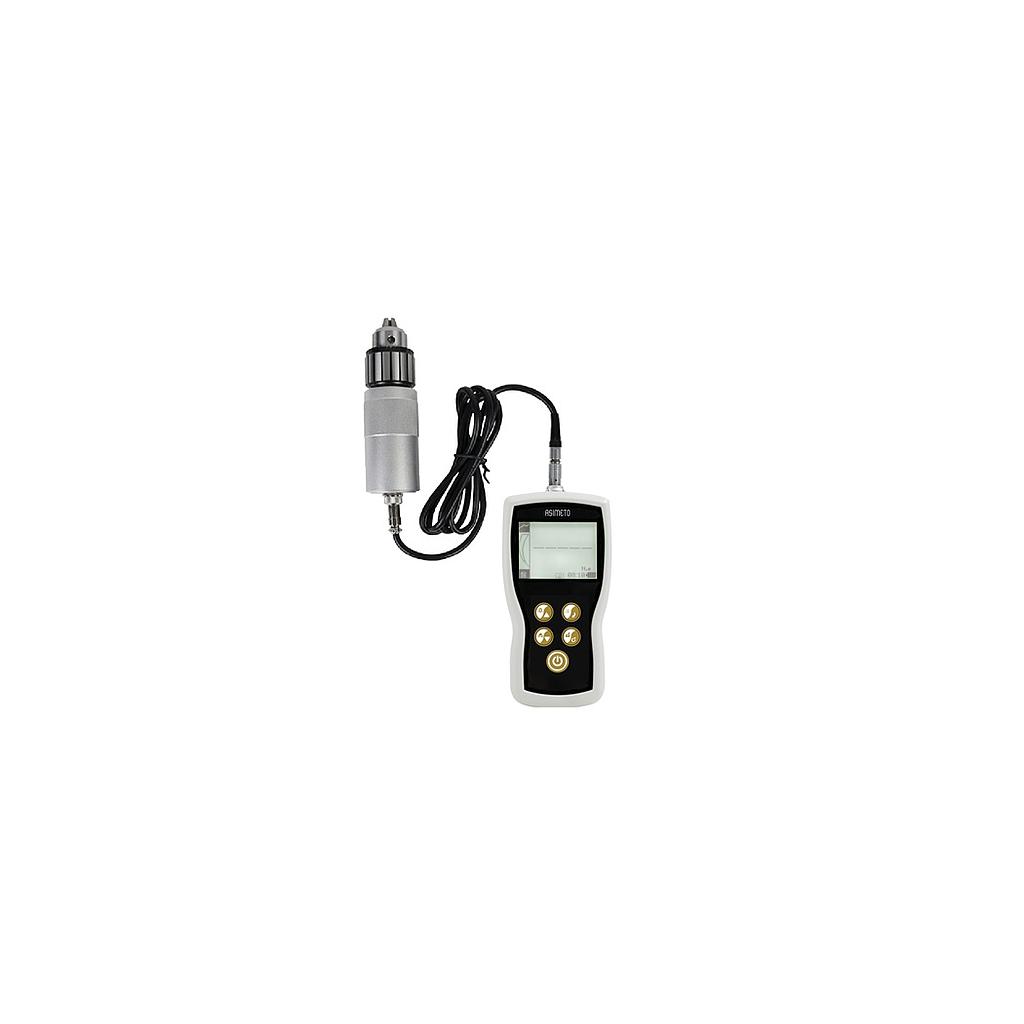

Asimeto 701-60-1 Digital Torque Indicators (ASTT A5, 5 N.m, 0.0005 N.M)

Model: ASTT A5

Resolution: 0.0005 N.M

Clamping Range: 1-10 mm

Loading Capacity: 5 N.m

External sensor.

Units options: N-m, N-cm, kgf-cm, lbf-ft, lbf-in

Measurement modes: Tracking, Peak, First Peak, Auto Peak, Auto First Peak, Double Peak.

Real time display measurement result.

Real time display 2-ways progress bar.

Graphic or Numerical display mode.

Automatic reversible display.

Upper and lower limit alarms and conclusion output.

Overload protection.

USB or RS232 interface.

Real-time torque curve can be display if connected to the software.

Sampling frequency: 2000 Hz.

Accuracy: ±0.3%
