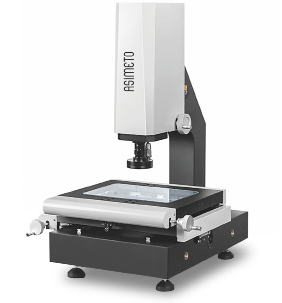

Asimeto 647-01-0 Manual 2D Vision Measuring System (MVS2010, 200 x 100mm)

Camera: 1.3M Pixel Digital Camera

Weight: 140kg

Model No.: MVS2010

Zoom lens**: 6.5X High Resolution Detented Zoom Lens | Magnification: 0.7X ~ 4.5X Video Magnification: 20X ~ 200X

Field of View: 8.1 ~ 1.3mm (Depends on Camera and Lens)

Repeatability: ±2μm

Z-Axis Travel: 200mm

Base and Pillar: High Accuracy Marble

X/Y-Axis Travel: 200 x 100mm

Dimension (WxDxH): 550 x 540 x 830mm

X/Y-Axis Accuracy*: ≤2.5 + L/200(μm)

Working Environment: Temperature: 20°C±2°C Change range < 2°C/hr | Humidity: 30% ~ 80% | Vibration <0.002g, <15Hz

X/Y/Z-Axis Scale Resolution: .0005mm

Illumination System (Software Adjustment): Surface: Stepless Adjustable 3-ring 8-division LED Cold Illumination | Contour: LED Parallel Illumination | LED Laser Navigation Lights

High precision marble base and mechanical structure provide great stability and rigidity.

6.5X Detented zoom lens, magnification 0.7x - 4.5x.

1.3M pixel digital camera.

Programmable 3-ring 8-division LED surface illumination.

Contour parallel LED illumination.

0.5μm linear scale.

Laser indicator navigator.

RationalVue software.
