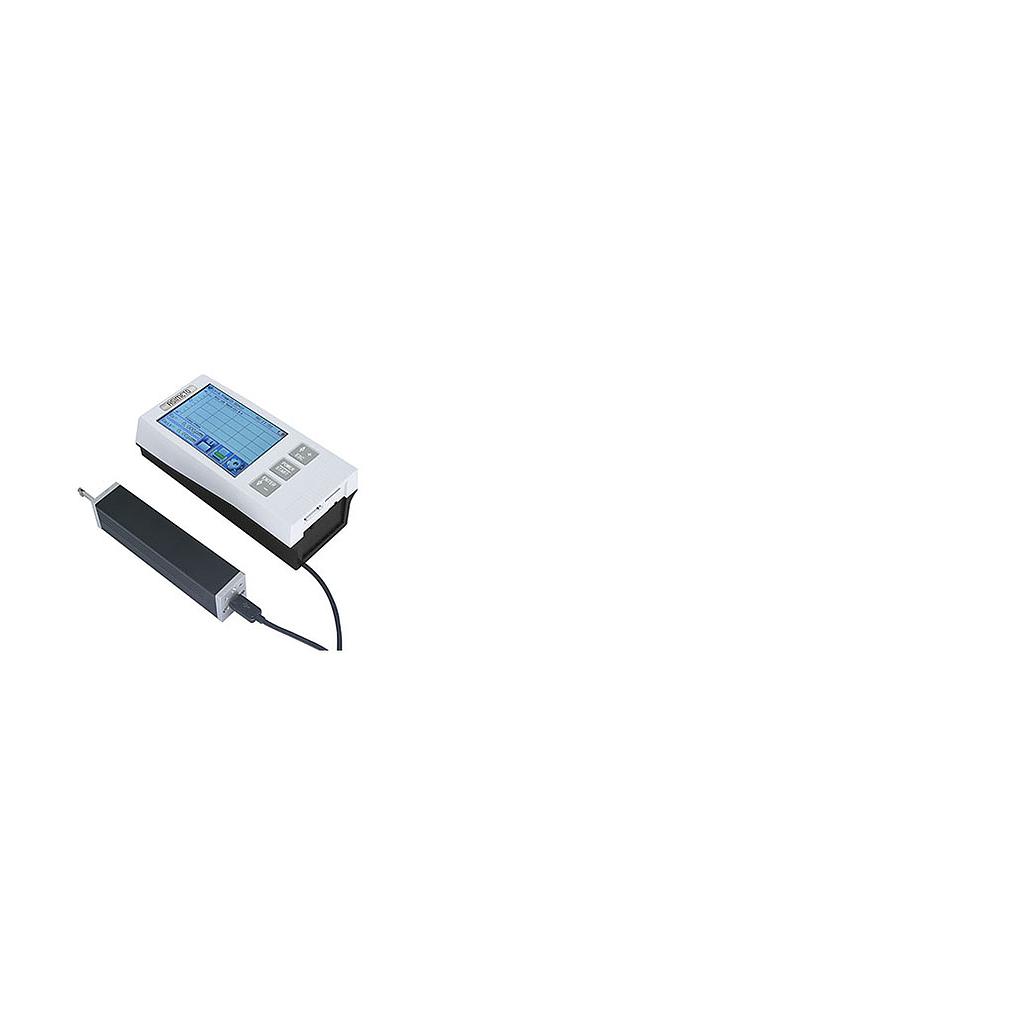

Asimeto 645-13-0 Surface Roughness Tester

Size: Control unit: 160x64x53mm | Drive unit: 115x23x27mm

Stylus tip: Diamond, 90° / 5μmR tip radius

Power supply: Built-in 3200mAh rechargeable Lithium ion battery; AC Adapter

Measuring force: 4mN

Measuring range: X axis: 17.5μm / 0.69" | Z axis: 320μm (-160μm - 160μm) / 12600μin (-6300μin - 6300μin)

Measuring speed: 0.135, 0.5, 1mm/s, 1mm/s (return)

Sampling length: 0.25, 0.8, 2.5mm

3.5-inch color graphic touch screen, provide high brightness, wide viewing angle.

Display full information, intuitive and graphical displays all parameters.

DSP chip control and data processing, high speed, low power consumption.

4 profile filter: Gauss, RC, PC-RC, D-P.

Multi parameters: Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rsm, Rku, Rc, Ry, Rmax, Rmr, RPc, Rk, Rpk, Rvk, Mr1, Mr2.

Complies standards: ISO, DIN, ANSI, JIS

Support Bluetooth printer and mobile APP wireless operation.

Large capacity data storage, can store 100 item of raw data and measured profile.

Automatic sleep, automatic shutdown power-saving features.

Able to connect to the computer and printer.

Optional accessories include curved surface sensor, deep groove sensor, small hole sensor, measurement stand, Sleeve of sensor, printer and analysis software.
