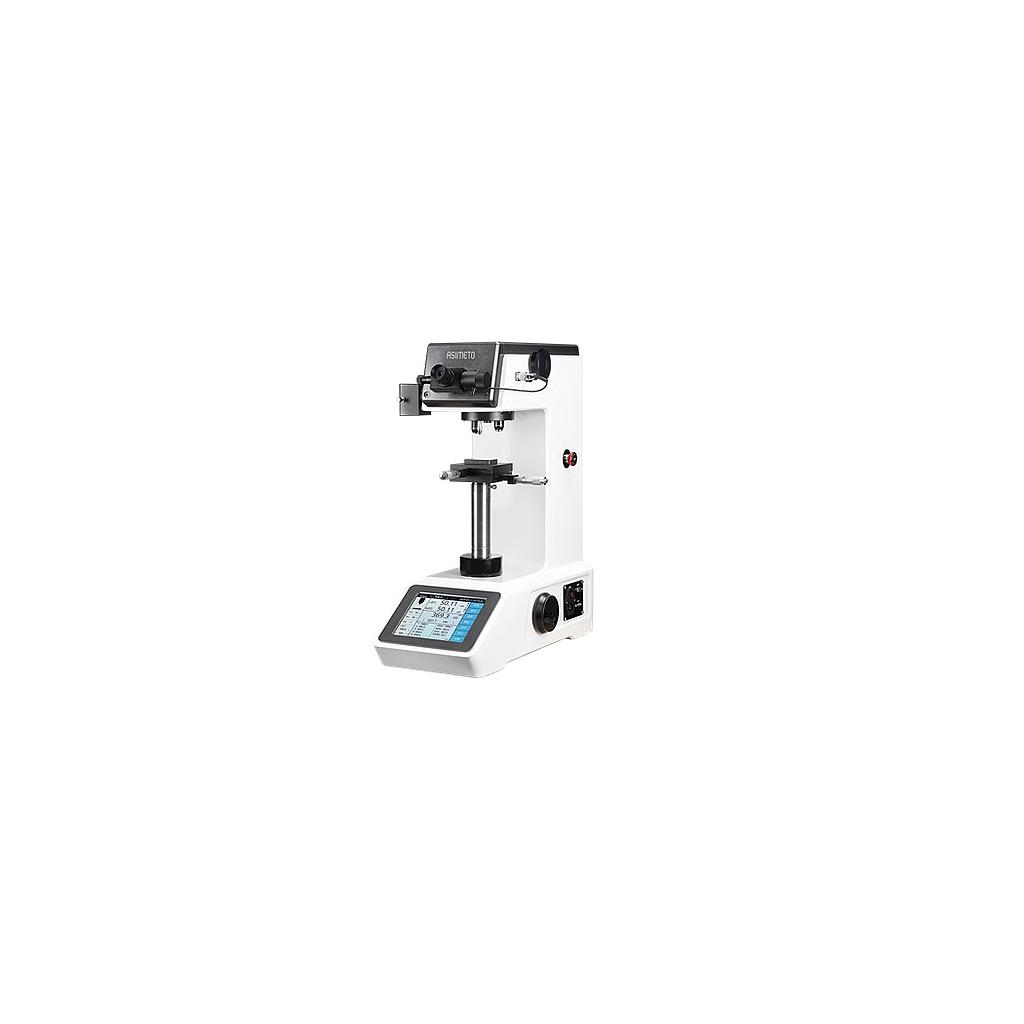

Asimeto 640-20-2 Digital Vickers Hardness Tester (5 - 3000HV)

Range: 5 - 3000HV

Weight: 105kg

Eyepiece: 10X

Dimension: 580 x 260 x 730mm

Objective: 10X, 20X

Test Force: 2.942, 4.904, 9.807, 19.61, 24.52, 29.42, 49.04, 98.07 N 0.3, 0.5, 1, 2, 2.5, 3, 5, 10 kgf

Test Height: 210mm

Power Supply: AC220V, 50Hz / 60 Hz

Throat Depth: 130mm

Load Dwell Time: 5 - 99 seconds

Min. Testing Unit: 0.125μm

Total Magnification: 100X, 200X

5.6" LCD touch screen with 4 short cut buttons.

Auto-Turret; frictionless spindle with high precision testing force.

Auto hardness conversion to others scales, no need to check table and improve working efficiency.

Dynamic display of pressure head during loading and unloading process, real-time test status.

Test force, indentation lenght, holding time, measurement frequency, etc. display on the screen.

Concave and convex surfaces hardness value auto correction.

Test result synchronized to database and export.

Support USB and RS232 interface.

Precision conforms to standard ISO 6507 and ASTM E92.
