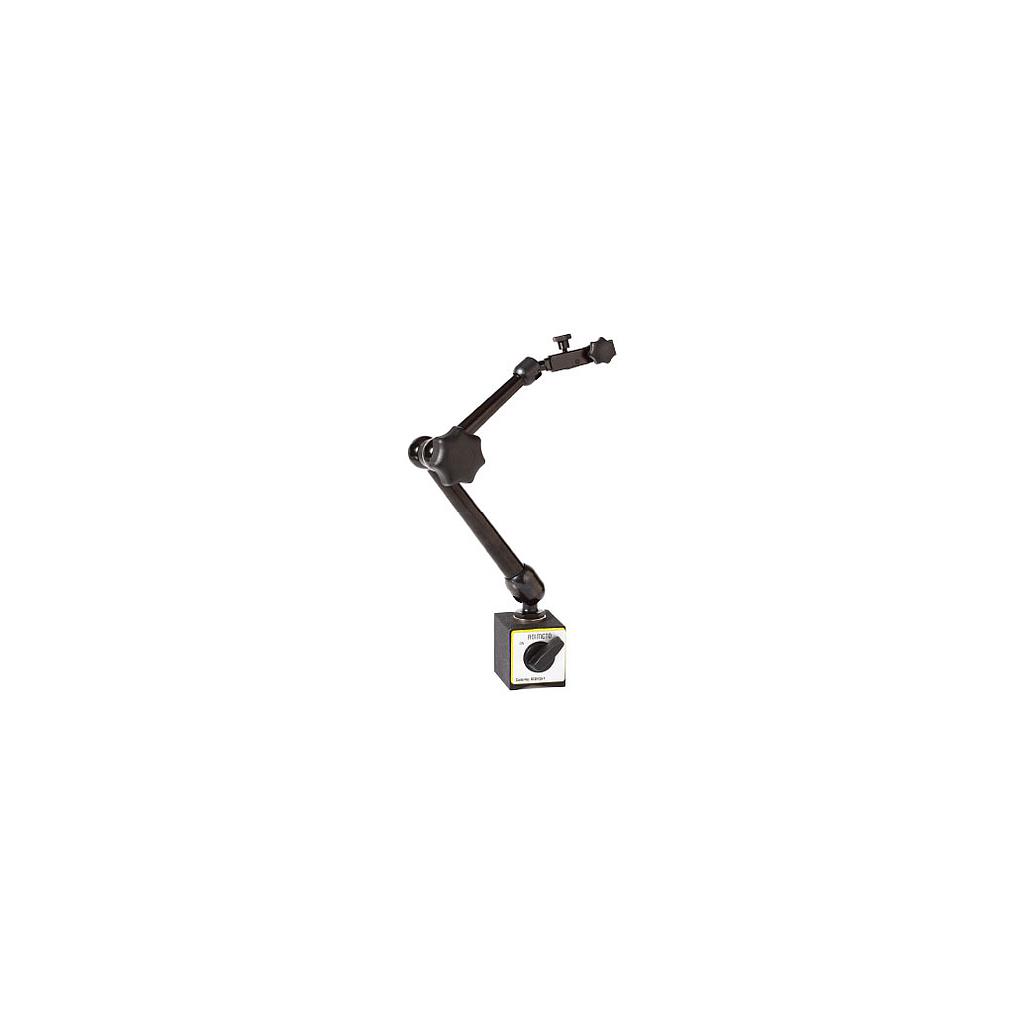

Asimeto 602-02-1 Articulating Arm Magnetic Bases (80 kgf, 60x50x55mm)

Slot: 6.5mm

Arm (L): 310mm

Arm (L1): 124mm

Arm (L2): 101mm

Arm (L3): 85mm

Dia. of Hole: Ø3/8" Ø8mm

Magnetic Power: 80 kgf

Base (L x W x H): 60x50x55mm

Accepts test indicators with dovetail clamping mechanism.

Dial gauges can be held by the 3/8" or 8mm diameter stem or by the lug backing plate.

Arm has 3 articulating joints that can be locked with the single hand knob.

The rotary knob switches natural magnet On or Off.

The precision surfaces and the bottom V are securely fastened to the ferrous workpiece or machine table when the rotary knob is in the on position.
