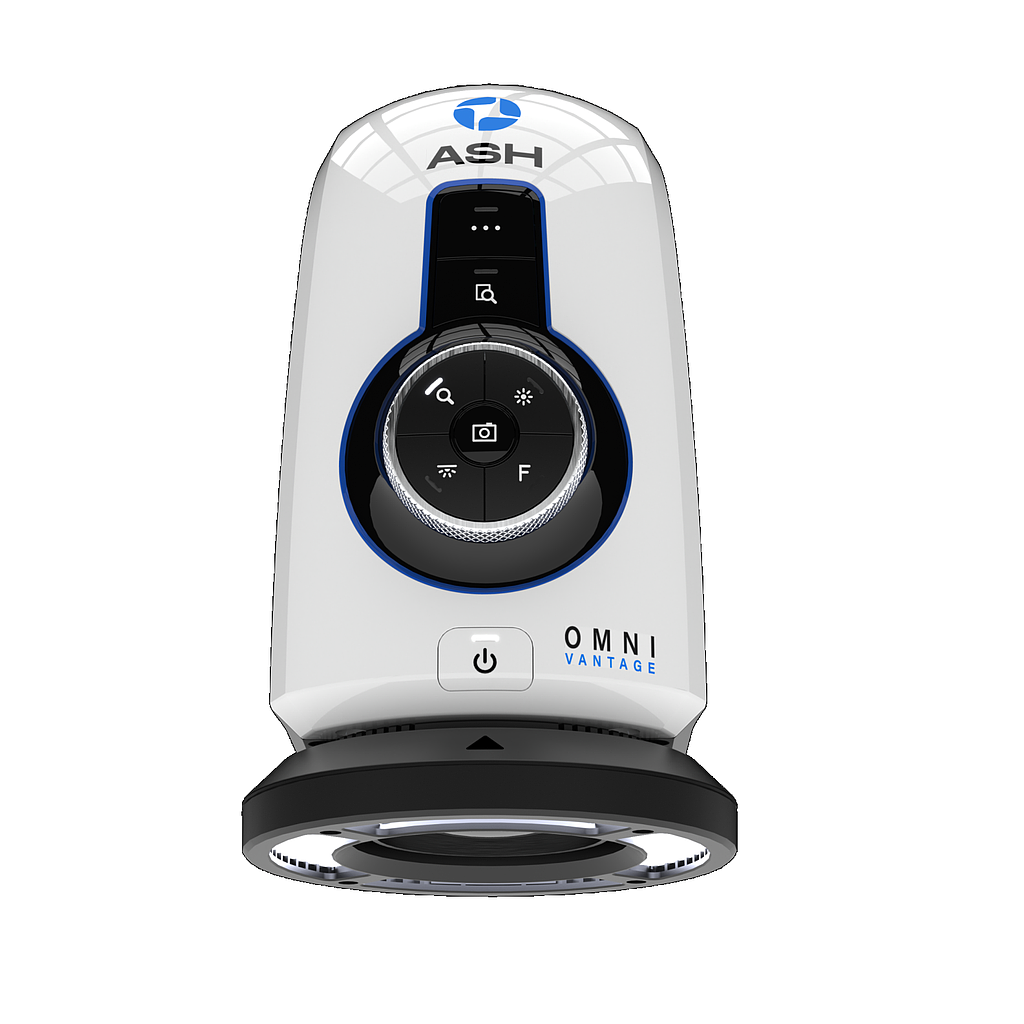

ASH Omni Vantage Digital microscope (2.7–61.6×; 3840 × 2160 pixel)

Magnification Range (with supplied +5 Vantage Lens): 2.7–61.6× (Optical); 61.6–123× (Digital)

Camera Resolution: 3840 × 2160 pixels

Monitor Connections: HDMI / DVI

Monitor Requirement: 4K monitor with native resolution

Power Consumption: 24 W

Dimensions (L × W × H): 216 × 125 × 136 mm

Weight: 1.5 kg

Operating Temperature (Storage): 10°C to +60°C

Operating Temperature (In Use): 5°C to 40°C

Internal Storage: 30 GB

Video Output: HDMI

USB Ports: 2 × USB 3.0

USB-C Port: Mini USB-C

General Purpose I/O: 3 ports

Power Input: DC 24 V

Network Interface: Ethernet

Image Capture: Internal storage

Image Storage: Removable USB

PC Connectivity: USB On-The-Go
