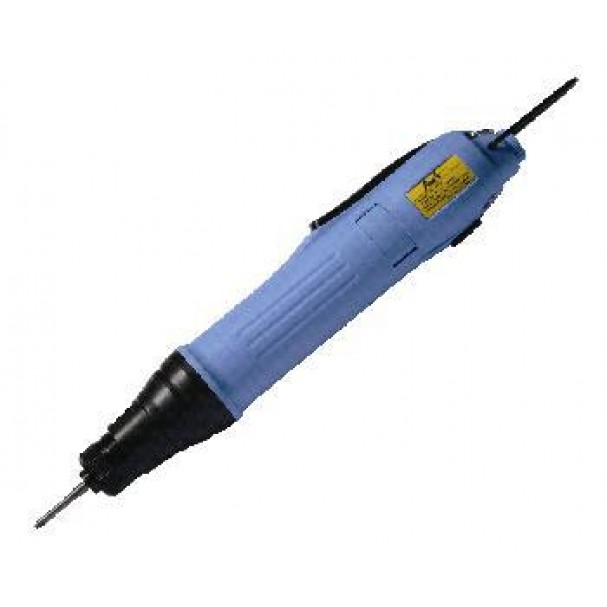

ASA ASA-2000 Full-auto shut off electric screwdriver - Level Start Type (0.3-2.0 kgf-cm, 1/4''Hex shank)

Power source: 35VDC

Torque range (kgf-cm/lbf-in): 0.3-2.0/0.26-1.74

No load speed rpm: 700

Torque setting: Stepless

Available screw:

Machine screw: 1.0-2.2/0.04-0.08 mm/in

Tapping Screw: 1.0-2.0/0.04-0.08 mm/in

Weight g/lb: 380/0.83 (Φ4.0); 430/0.94 (Φ5, 1.4" Hex shank)

Length mm/in: 208/8.2 (Φ4.0); 228/9.0 (Φ5, 1/4" Hex shank)

Available bit shank: Φ4.0, 1/4" Hex shank)

Power comsumption W: 30

Available power supply: 30V

Clutch impact: Just on time when torque up

Accessories: Power supply APS-351B
