ASA AD-7682 Full-auto disk-brake shut off electric screwdriver - Push to Start Type (10.0-30.0kgf-cm, 1/4", Push to Start)

Power source: AC220 /240 (50HZ)

Torque range (kgf-cm/lbf-in): 10.0-30.0/8.7-26.0

Torque accuracy: ±3%

No load speed rpm: 1000

Torque setting: Stepless

Available screw:

Machine screw: 3.0-5.0/0.12-0.2 mm/in

Tapping Screw: 2.6-4.0/0.1-0.16 mm/in

Weight g/lb: 740/1.6

Length mm/in: 269/10.6

Available bit shank: 1/4’’(6.35)Hex shank

Power comsumption W: 50

Clutch impact: Just on time when torque up

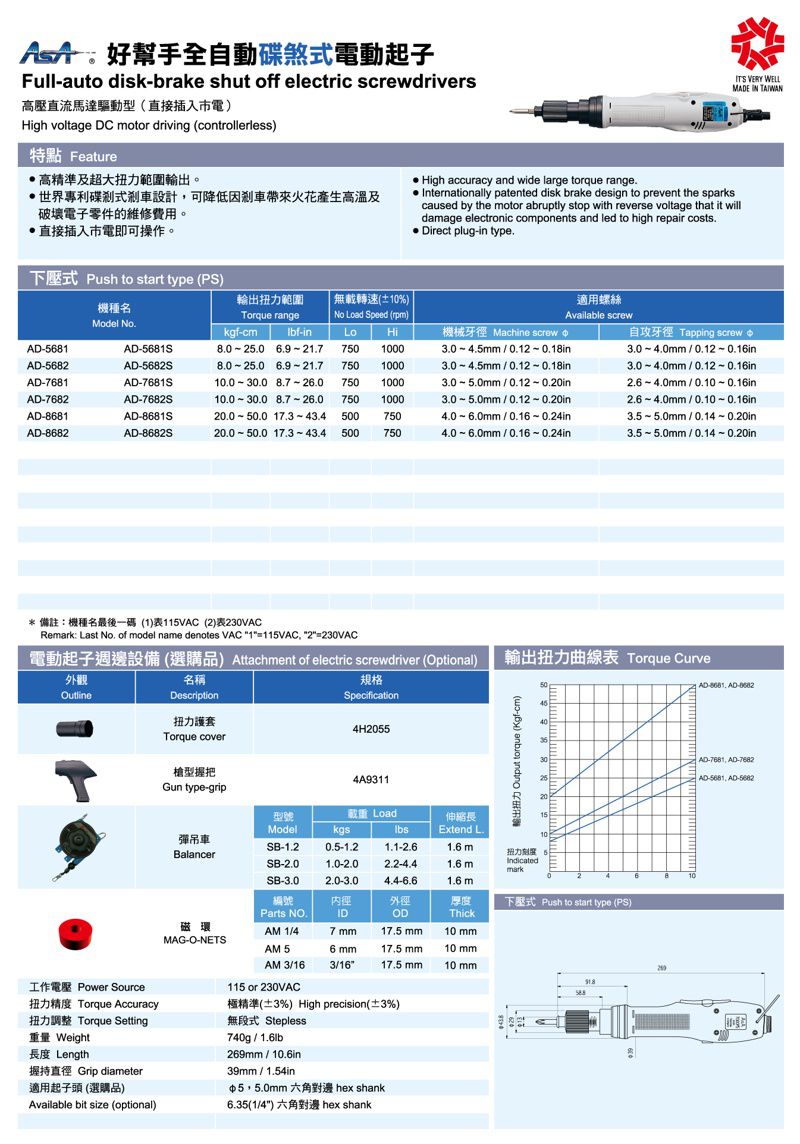

Datasheet
