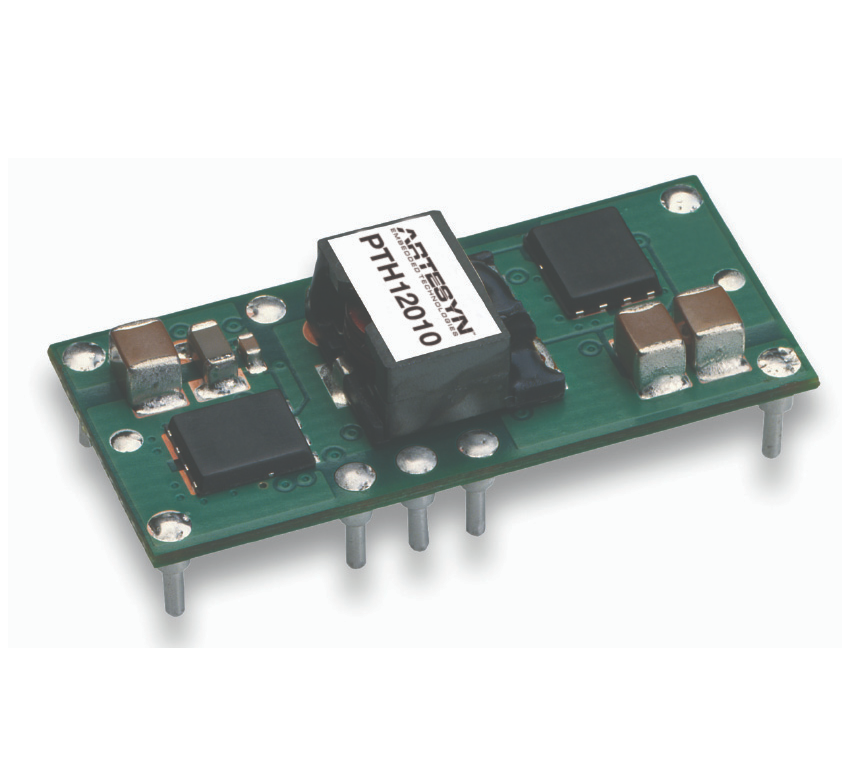

Artesyn PTH12010W 66 Watt Non-Isolated DC-DC Converter (5.5V; 12A; 66W)

Input voltage range: 10.8 - 13.2 Vdc

Output Setpoint accuracy: ±2.0% Vo

Output Power (Max.): 66 W

Output Voltage: 1.2 - 5.5 Vdc

Output Current (Min.): 0 A

Output Current (Max.): 12 A

Line regulation: ±10 mV typical

Load regulation: ±12 mV typical

Ripple and noise (20 MHz bandwidth): 25 mV pk-pk

Efficiency: 94%

Dimensions (L x W x H): 34.80 x 15.75 x 9.00 mm

Weight: 5 g (0.18 oz)

Operating ambient temperature: -40 °C to +85 °C

Non-operating temperature: -40 °C to +125 °C

Datasheet
