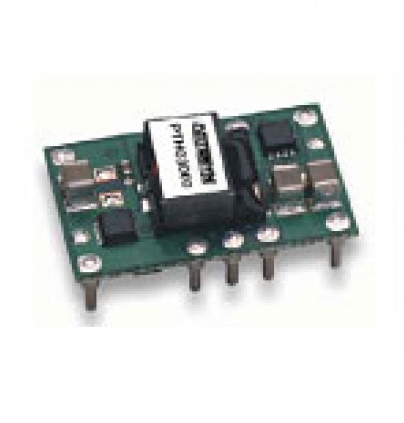

Artesyn PTH03060 25 Watt Non-Isolated DC-DC Converter (2.5V; 10A; 25W)

Input voltage range: 2.95 - 3.65 V

Output Power (Max.): 25 W

Output Voltage: 0.8 - 2.5 V

Output Current (Min.): 0 A

Output Current (Max.): 10 A

Setpoint accuracy: ±2.0% Vo

Line regulation: ±10 mV

Load regulation: ±12 mV

Ripple and noise: 20 mV pk-pk

Efficiency (Typical): 93%

Operating ambient temperature: -40 °C to +85 °C

Non-operating temperature: -40 °C to +125 °C

Dimensions (L x W x H): 25.27 x 15.75 x 9.00 mm

Weight: 3.7 g (0.13 oz)
