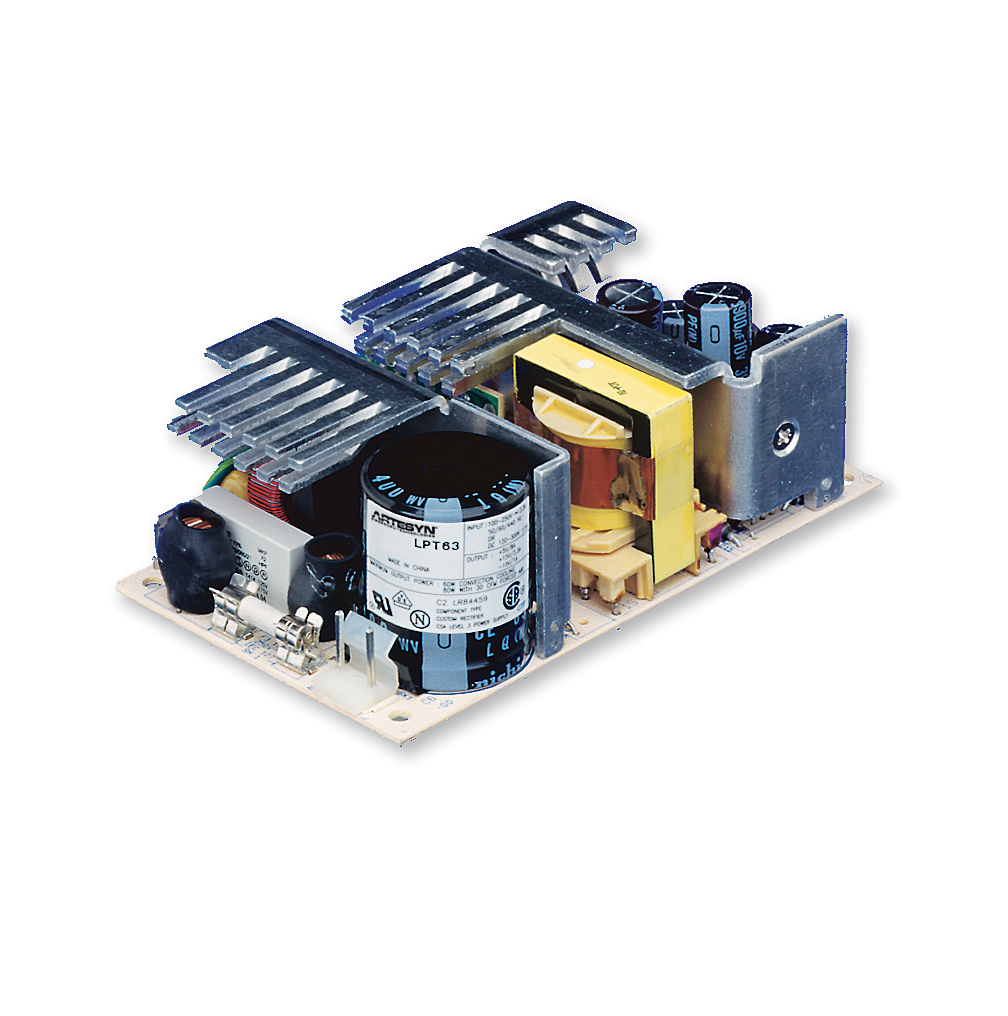

Artesyn LPT62-M Open Frame, Low Power AC-DC Power Supply (-12V~+12V; 60-80W)

Input

Input range: 85 - 264 Vac;b120 - 300 Vdc

Frequency: 47 - 440 Hz

Inrush current: <18 A peak @ 115 Vac; <36 A peak @ 230 Vac, cold start @ 25 °C

Input current: 1.5A max. (RMS) @ 115VAC

Output

Maximum power: 60 W for convection; 80 W with 30CFW forced air

Cross regulation: ±2% on output 1; ±5% on outputs 2, 3

Adjustment range: -5, +10% minimum

Hold-up time: 20 ms @ 60 W load, 115 Vac nominal line

Environmental Specifications

Operating temperature: 0°C to 50°C ambient derate each output at 2.5% per degree from 50°C to 70°C, -20°C startup

Humidity: Operating; non-condensing 5% to 95%

Storage temperature： -40°C to 85°C

Function: EMI; Overload protection; Overvoltage protection; Remote sense; Safety ground

leakage current

Ordering Information

Output: Triple

1.

Output Voltage: +5 V

Minimum Load: 0.7 A

Maximum Load with Convection Cooling: 7 A

Maximum Load with 30CFM Forced Air: 8 A

Peak Load: 10 A

Regulation: ±2%

Ripple P/P (PARD): 50 mV

2.

Output Voltage: +12 V

Minimum Load: 0.3 A

Maximum Load with Convection Cooling: 3 A

Maximum Load with 30CFM Forced Air: 3.5 A

Peak Load: 6 A

Regulation: ±5%

Ripple P/P (PARD): 120 mV

3.

Output Voltage: -12 V

Minimum Load: 0 A

Maximum Load with Convection Cooling: 0.7 A

Maximum Load with 30CFM Forced Air: 1 A

Peak Load: 1.5 A

Regulation: ±5%

Ripple P/P (PARD): 120 mV
