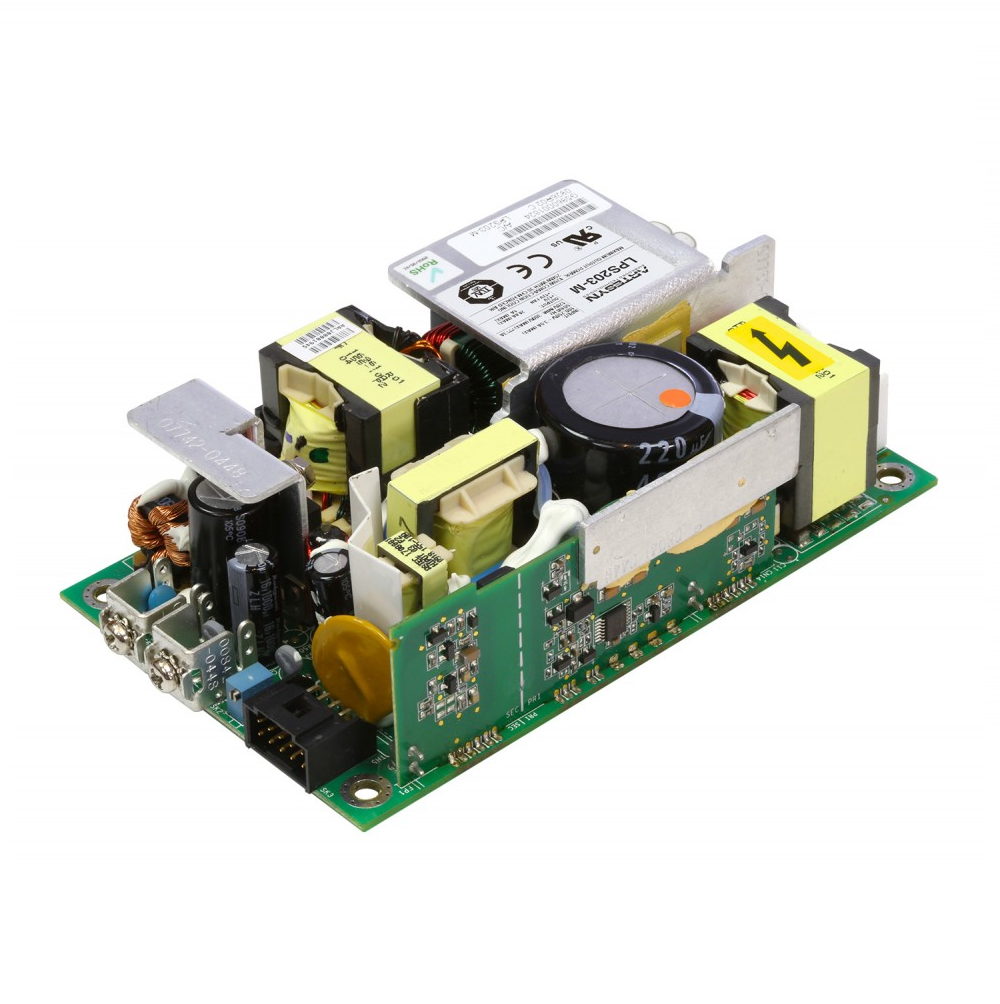

Artesyn LPS202-M Open Frame, Low Power AC-DC Power Supply (5V; 125-250W)

Input

Input range: 90 - 264 Vac; 120 - 300 Vdc

Frequency: 47 - 63 Hz

Inrush current: 50 A max., cold start @ 25°C

Output

Maximum power: 125 W for convection (100 W for LPS202-M); 250 W (200 W for LPS202-M) with 30CFM forced air

Adjustment range: ± 10% minimum on the main outputs

Hold-up time: 16 ms @ 250 W load, 120 Vac input

Environmental Specifications

Operating temperature: 0°C to 50°C ambient derate each output as 2.5% per degree from 50° to 70°C. -20°C start up

Storage temperature: -40 °C to +85 °C

Humidity: Operating; non-condensing 10% to 95% RH

Function:ƒ EMI/RFI, power factor, safety ground leakage curent, fan output, overload protection, overvoltage protection; power failure, remote sense

Ordering Information:

Output Voltage: 5 V

Minimum Load: 0 V

Maximum Load with Convection Cooling: 20 A

Maximum Load with 30CFM Forced Air: 40 A

Peak Load: 44 A

Regulation: ± 2%

Ripple P/P (PARD): 50 mV
