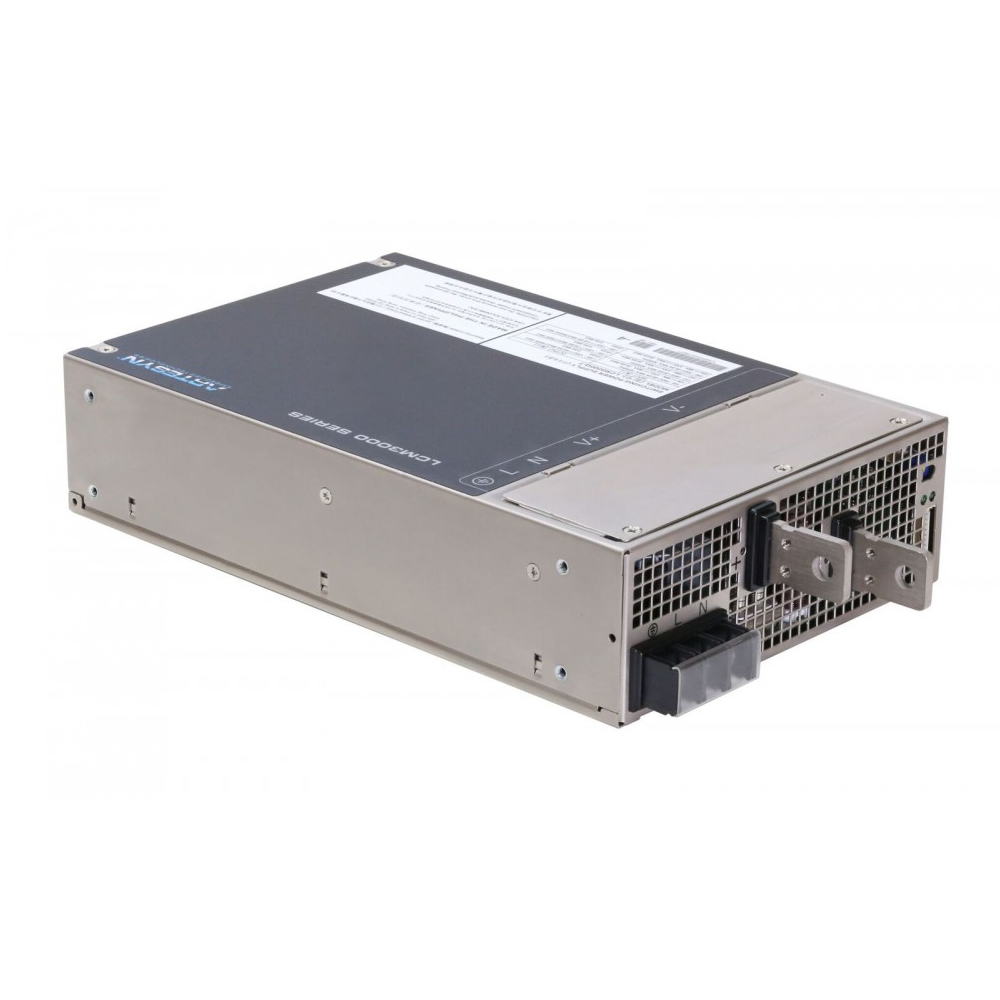

Artesyn LCM30007-T Bulk Power Supply (72V; 41.7A; 3000W)

Input

Input range:

90 - 264 Vac (Operating) Derate to 1500 W below 180 Vac input

115/230 Vac (Nominal)

TERMINAL BLOCK

Frequency: 47-63 Hz, Nominal 50/60 Hz

Input current: 20 A RMS max input current, at 100 Vac

Output

Output rating: See table 1 90 - 264 Vac (Derate down to 50% below 180 Vac)

Rated load: 3000 W maximum (Derate to 1500 W when input is <180 Vac). Derate linear to 50% from 50 °C to 70 °C

Minimum load: Main output @ 0.0 A, 5 Vsb @ 0.0 A. No loss of regulation

Functions: Overload protection (OCP) – Constant current mode; Overvoltage protection (OVP); Overtemperature protection

Environmental Specifications

Operating temperature: -40 °C to +70 °C, linear derating to 50% from 50 °C to 70 °C. Operation at -40 °C requires a 5 minute operating warm-up at -20 °C

Storage temperature: -40 °C to +85 °C

Humidity: 10 to 90%, non-condensing. Operating. Conformal coat option available

Nominal Output Voltage Set Point: 72 V

Adjustment Range:

Max I: 14.4 V – 72 V

Max Power (3000 W): 72 V – 90 V

Max I (3000 W): 41.7 A

Max I (1500 W): 20.8 A

Output Ripple P/P (0-50 °C): 720 mV OR 1% whichever is higher

Combined Line/Load Regulation: 1%

Trim Range ± 25%: 54 V – 90 V

“Vprog Adjustment” 0 V to 6 V (20% to 125% Vout): 14.4 V – 90 V
