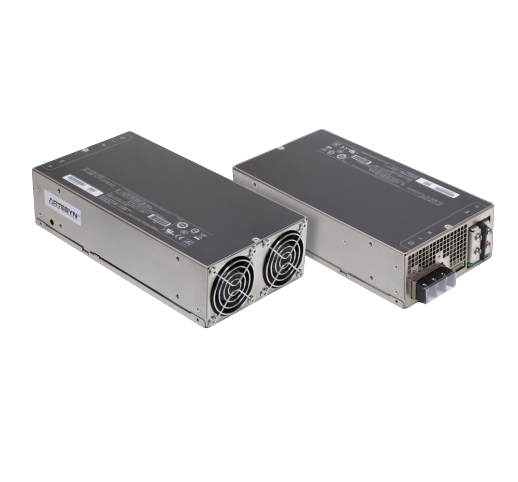

Artesyn LCM1000U Bulk Power Supply (36V; 27.8A; 1000W)

Input

Input range: 90 - 264 Vac (Operating); 115/230 Vac (Nominal) TERMINAL BLOCK

Frequency: 47 - 440 Hz, Nominal 50/60

Input current: 12 A RMS max input current, at 100 Vac

Output

Output rating: See table 1: 90 - 264 Vac

Rated load: 1000 W maximum. Derate linear to 50% from 50 °C to 70 °C

Minimum load: Main output @ 0.0 A; 5 Vsb @ 0.0 A. No loss of regulation

Operating temperature:-20 °C to 70 °C (with linear 50% derating from 50 to 70 °C)

Storage temperature: -40 °C to +85 °C

Humidity: 20 to 90%, non-condensing. Operating. Conformal coat option available.

Functions: Short circuit protection; Overload protection (OCP); Overvoltage protection (OVP); Overtemp protection

Ordering Information

Output: 36 V

Nominal Output Voltage Set Point: 36 V

Set Point Tolerance: ±0.5%

Adjustment Range: 32.4 - 39.6 V

Current

Min: 0 A

Max: 27.8 A

Output Ripple P/P (0-50°C): 360 mV

Max Continuous Power: 1000 W

Combined Line/ Load Regulation: 2%
