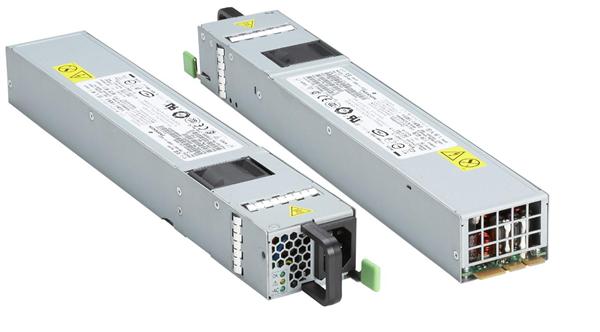

Artesyn DS800SL-3 Front End Power Supplies 12V output, 760W 1U x 1U x 12.67" Gold with Forward air

Width: 2.15 in

Height: 1.58 in

Length: 1.057 ft

Industry: Industrial

Efficiency: 92 %

Unit Weight: 1.456 kg

Output Power: 800 W

Input Voltage: 90 VAC to 264 VAC

Cooling Method: Air-Cooled

Mounting Style: Rack

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Mechanical Style: Hot-Swap

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 90 VAC

Open Frame/Enclosed: Enclosed

Input Voltage, Nominal: 115 VAC, 230 VAC

Output Current-Channel 1: 66.7 A

Output Voltage-Channel 1: 12 V

Output Voltage-Channel 2: 5 V

Operating Temperature Range: - 10 C to + 50 C

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: - 10 C
