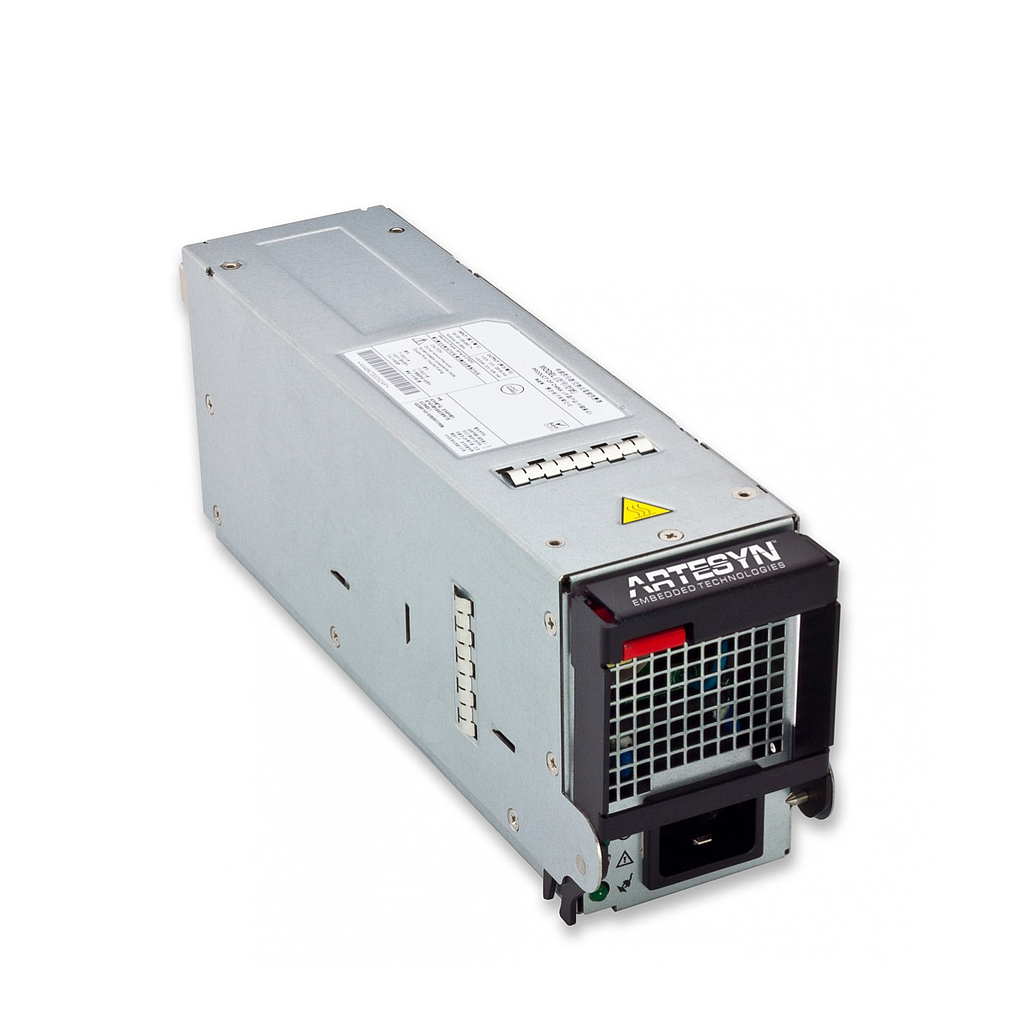

Artesyn DS3000TE-3 Front-end Power Supply (12V/250A; 12VSB/4.5A; 3000W)

Input voltage range:

Forward air: 208 to 264 Vac, 3000 W

Reverse air: 208 to 264 Vac, 2960 W

Frequency: 47 Hz to 63 Hz

Max input current: <16.0 Arms @ 208 Vac

Main DC Output

Nominal setting: MIN: 0.20% /NOM: 12.1/ MAX: 0.20%

Total output regulation range: MIN: 11.5 V/ MAX: 12.7 V

Output current: MIN: 1.0/ MAX: 250 A

Standby DC Output

Nominal setting: MIN: -2%/ NOM: 12.0 V / MAX: 2%

Total output regulation range: MIN: 11.5 V/ MAX: 12.7 V

Output current: MIN: 0 A/ MAX: 4.5 A

Operating temperature: 0 to 40 °C

Operating relative humidity: 5% to 95% non-condensing

Standard Airflow
