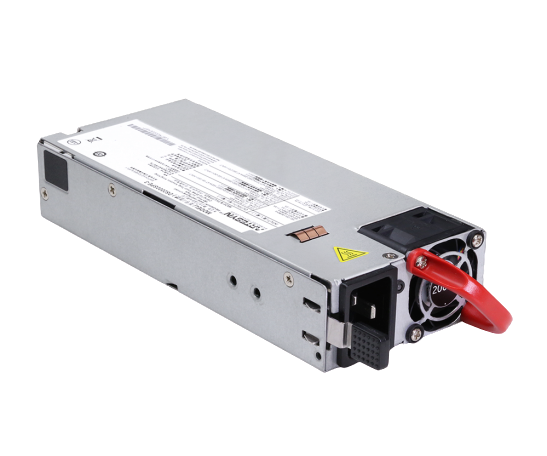

Artesyn DS2000SPE-3 Front-end Power Supply (12.2V/163.9A; 12Vsb/3.5A; 2000W)

Input voltage range: 180 to 264 Vac: 2000 W; 90 to 140 Vac: 1000 W

Frequency: 47 Hz to 63 Hz

Max input current: 11.5 Arms at 100/200 Vac

Main DC Output

Nominal setting: MIN: 12.175 /NOM: 12.2/ MAX: 12.225

Total output regulation range: MIN: 11.4 V/ MAX: 12.9 V

Output current: MIN: 5.0 A1, 2 (minimum starting load for 17% transient step)/ MAX: 163.9 A at high line; 82 A at low line

Standby DC Output

Nominal setting: MIN: 11.95/ NOM: 12/ MAX: 12.05

Total output regulation range: MIN: 11.4 V/ MAX: 12.6 V

Output current: MIN: 0.0 A/ MAX: 3.5 A

Operating temperature: 0 to 50 °C, allowable up to 60 °C at derated output of 2.6%/°C above 50 °C

Operating relative humidity: Up to 95% non-condensing

Nominal Main Output: 12.2 V @ 163.9 A

Standby Output: 12 V @ 3.5 A

Airflow Direction: Standard (forward)
